一、进口空气增压泵概述

威盾VTON的空气增压泵，Air booster pump，使用于原空压系统要提高压力的工作环境中，能够将工作系统的空气压力提高到2-5倍，仅需要将工作系统内压缩空气作为气源即可，该泵适合单气源增压。

空气增压泵又称气体增压阀，是利用大面积活塞端的低压气体驱动而产生小面积活塞端的高压流体。可用于压缩空气及其它气体，输出气压可通过驱动气压无级调节。使用于原空压系统要提高压力的工作环境中。

The air booster pump of Weidun VTON, Air booster pump， In the working environment where the original air compression system needs to increase pressure, the air pressure of the working system can be increased by 2-5 times, and only the compressed air in the working system needs to be used as the gas source. This pump is suitable for single source boosting.

An air booster pump, also known as a gas booster valve, is a device that utilizes low-pressure gas from a large piston end to generate high-pressure fluid from a small piston end. It can be used to compress air and other gases, and the output pressure can be infinitely adjusted by driving the pressure. Used in the working environment where the original air compression system needs to increase pressure.

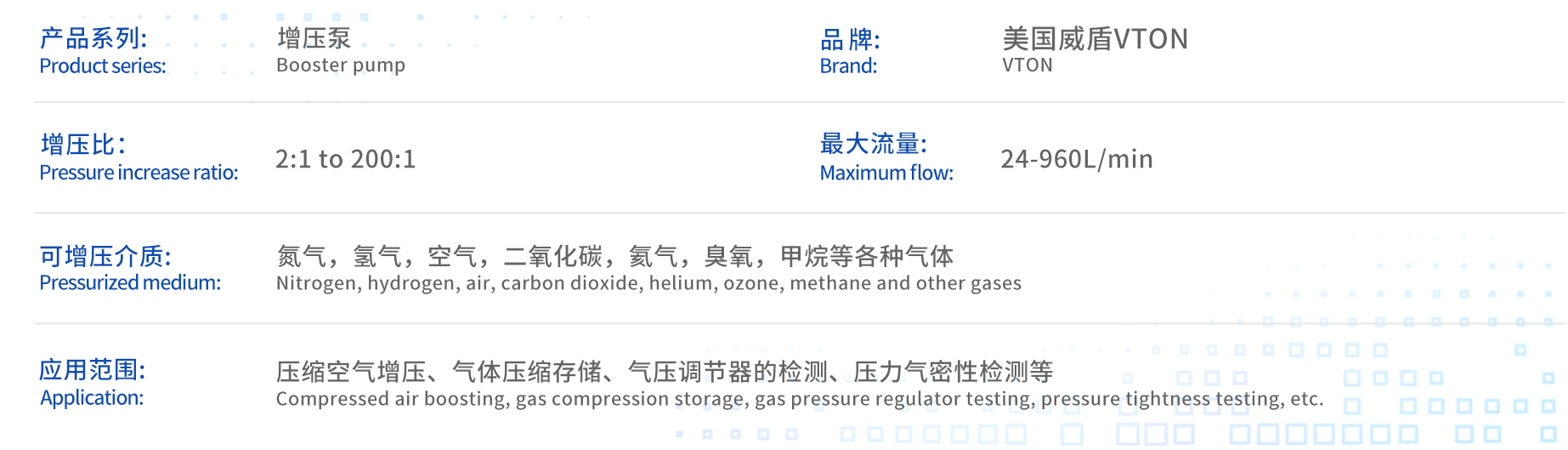

二、进口空气增压泵参数

三、进口空气增压泵工作原理

空气增压泵通过大面积推小面积来实现增压，其中大面积部分为驱动气缸，空气部分，驱动气缸直径160mm，通过面积比来实现增压，其中驱动气体压力为0--0.8MPa，通过帕斯卡原理实现增压，即驱动气缸面积*驱动压压力=最终实现的气体压力*被增压部分的气缸面积。

The air booster pump achieves boosting by pushing a small area over a large area, where the large area is the driving cylinder and the air part is the driving cylinder with a diameter of 160mm. Boosting is achieved through the area ratio, where the driving gas pressure is 0-0.8MPa. Boosting is achieved through the Pascal principle, where the driving cylinder area * driving pressure=final achieved gas pressure * cylinder area of the boosted part.

四、进口空气增压泵产品特点

1、多种气源驱动：压缩空气、氮气等均可作为泵的驱动气源

2、自动保压：无论何种原因造成保压回路压力下降，思明特泵将自动启动，补充泄露压力，保持回路压力恒定

3、具有无极可调压力

4、泵能连续工作，当达到所需要压力时，不再运动，不再消耗能量

5、结构紧凑，所需安装空间小

6、可长时间保压而不消耗能量

7、适应多尘，潮湿等各种恶劣环境

8、采用压缩气体驱动，特别适用于防爆应用领域

9、保压时介质不会产生过热现象，延长介质使用寿命

1. Multiple gas sources for driving: compressed air, nitrogen, etc. can be used as the driving gas source for the pump

2. Automatic pressure maintenance: Regardless of the reason for the pressure drop in the pressure maintenance circuit, the Siming pump will automatically start to supplement the leakage pressure and maintain a constant circuit pressure

3. Has infinitely adjustable pressure

4. The pump can work continuously, and when it reaches the required pressure, it no longer moves or consumes energy

5. Compact structure, requiring minimal installation space

6. Can maintain pressure for a long time without consuming energy

7. Adapt to various harsh environments such as dust and humidity

8. Driven by compressed gas, especially suitable for explosion-proof applications

9. When maintaining pressure, the medium will not overheat, extending the service life of the medium

五、进口空气增压泵应用范围

1、天然气提升压力

2、安全阀门校定

3、阀门及井口装置水中冒泡试验

4、气压调节器的检测

5、可增压氧气，氮气，氢气，空气，甲烷等各种气体

1. Natural gas increases pressure

2. Safety valve calibration

3. Bubble test in water for valves and wellhead equipment

4. Testing of air pressure regulator

5. Capable of boosting various gases such as oxygen, nitrogen, hydrogen, air, methane, etc
