产品介绍

一、进口光学浓度计概述

威盾VTON光学浓度计,是采用光谱在液体中的传播规律,通过高分辨率光谱传感器进行采样,由软件进行分析运算处理,得到浓度的规律性,再通过温度补偿,从而测出各种液体或液态混合物的浓度。液体必须有一定的透明度;在石化行业可广泛应用于石油、炼油、调油的检测;在食品工业用于葡萄汁、番茄汁、果糖浆、植物油及软饮料加工等生产现场;奶制品业;造纸业;碱溶液的测量;酿酒酒精度;化工类的尿素、清洁剂、乙二醇、酸碱及聚合物密度的测量。还可应用于采矿盐水、钾碱、生物制药等行业。它适用于管道安装或容器壁处的安装。

The optical intensity of the light in the body of the light, the amount of light in the liquid of the light, and the high rate of light, the light of the light, and the analysis of the results of the analysis were carried out. Liquid constant constant transparency; It is petroleum, oil, oil oil The grape juice for the food industry, the nullar soup, the fructose, vegetable oil, and the processing of Lottery Zoho Dissolved liquid Sake liquor; It is the density of the chemical substance of urea, Kiyo, and the acid. For the sake of convenience, it is a combination of water, and the biological system. It can be used as a container or a wall.

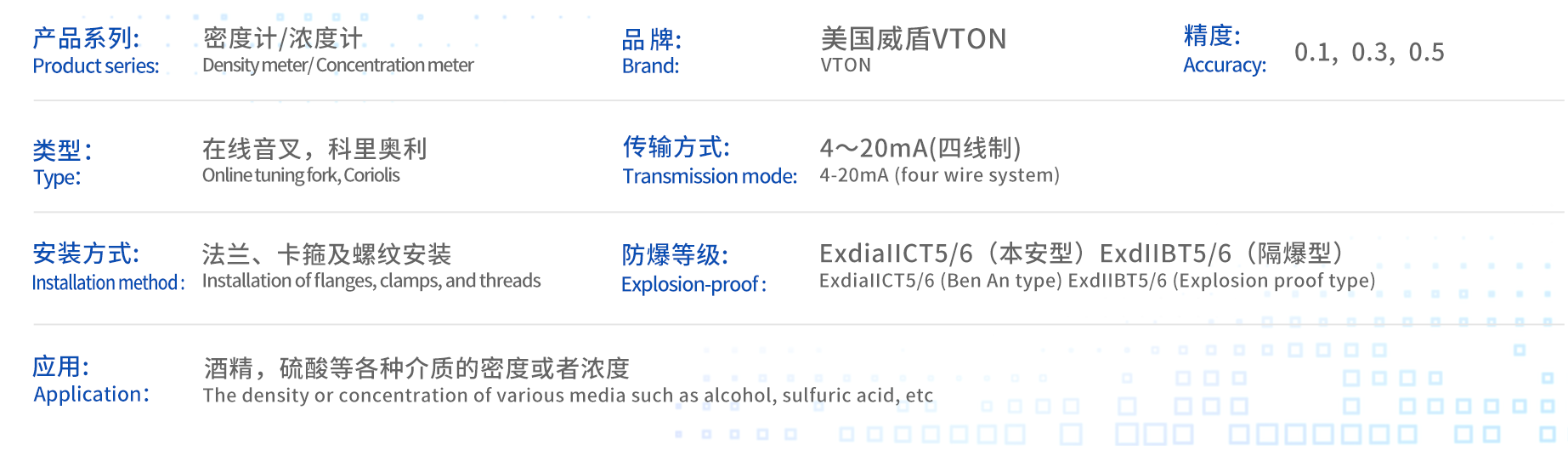

二、进口光学浓度计主要性能参数

精度:±0.5%
工作范围:0~100%(20℃),按使用情况,可标定为某个量程段
重复性:±0.2%
过程温度影响(已校正):±0.001%(每℃)
过程温度:–10℃~+60℃
环境温度:–10℃~+45℃
温度系数:O.1%/m3/℃(校正后)
内置温度传感器:温度芯片
接液部件:316L、聚四氟乙烯
玻璃:耐碱酸
外壳:铝合金
最大工作压力:0.8MPa
试验压力:在最大工作压力 1.5 倍的压力下进行测试
连接类型:法兰、卡箍
防爆认证:Exd ⅡC T6 Gb
电源要求:24   VDC,50mA
输出:四线制,4-20mA
粘度范围:<5000MPa.s
