一、进口压缩空气流量计概述

压缩空气流量计，在任何工业现场中都有应用，主要用于压缩空气的计量，压缩空气贸易结算，压缩空气计量能耗管理和成本控制等。压缩空气流量计量是工业过程计量中重要的环节，技术选型更是一件很慎重的事情，首先必须了解现场工艺流体的性质，充分考虑到精确度、测量环境、重复性、测量范围、压力损失和响应时间等因素，才能对选型作出正确判断。随着传感器技术和计算机技术的进步，压缩空气流量测量将向高可靠性、广泛适应性等方面发展。

压缩空气流量计，安装过程中前后直管段是否满足要求，管道和流量计之间水平或竖直，管道周围是否便于产品维护，还要考虑到现场的温度，是否有电磁干扰，是否存在振动。经济上：如工厂在线监测选择流量计，要考虑减少压损，节约能耗、在大口径管道上应使用插入式压缩空气流量计，减少管路安装等，以节约成本。另外，应尽可能保证压缩空气的洁净，以免影响测量精度，因此在气体质量不好或者测量小流量时应加装油水分离器、干燥设备等净化设备来保证气体的洁净。

美国威盾VTON品牌的进口压缩空气流量计，产品主要可测量：压缩空气的计量，目前广泛用于石汽车制造、机械、轻工、纺织、电子、食品、医药、玻璃制造、能源、环保等行业。

Compressed air flow meters are widely used in any industrial field, mainly for measuring compressed air, settling compressed air trade, managing compressed air metering energy consumption, and cost control. Compressed air flow measurement is an important part of industrial process measurement, and technology selection is a very cautious matter. Firstly, it is necessary to understand the properties of the process fluid on site, fully consider factors such as accuracy, measurement environment, repeatability, measurement range, pressure loss, and response time, in order to make a correct judgment on selection. With the advancement of sensor technology and computer technology, compressed air flow measurement will develop towards high reliability and wide adaptability.

During the installation process of compressed air flow meters, whether the front and rear straight pipe sections meet the requirements, whether the pipeline and flow meter are horizontal or vertical, whether the surrounding area of the pipeline is convenient for product maintenance, as well as considering the temperature on site, whether there is electromagnetic interference, and whether there is vibration. Economically, when selecting flow meters for online monitoring in factories, consideration should be given to reducing pressure loss, saving energy consumption, using plug-in compressed air flow meters on large-diameter pipelines, and reducing pipeline installation to save costs. In addition, it is necessary to ensure the cleanliness of compressed air as much as possible to avoid affecting measurement accuracy. Therefore, when the gas quality is poor or when measuring small flow rates, purification equipment such as oil-water separators and drying devices should be installed to ensure the cleanliness of the gas.

VTON's imported compressed air flow meters are mainly used for measuring compressed air, and are currently widely used in industries such as automobile manufacturing, machinery, light industry, textile, electronics, food, medicine, glass manufacturing, energy, and environmental protection.

二、进口压缩空气流量计特点

1、结构简单、无可动部件、长期运行可靠重复性高，测量精度高

2、可自由选配温度补偿、压力温度，满足更多现场使用、传感器具有独特的抗振动和抗干扰的封装工艺，现场抗干扰性更强

3、传感器输出为脉冲频率，其频率与被测流体的实际流量呈线性，零点无漂移，性能十分稳定

4、内置完善的抗干扰多级保护电路，有效消除现场振动及工频等干扰

5、安装方式灵活，根据现场工艺管道不通，可水平，垂直和不同角度倾斜安装

6、压力损失小 运行费用低 更具节能意义，先进的数字信号处理技术下限低抗振性能优异

7、由软件对仪表系数非线性进行修正，提高测量精度

8、具有完善的数据备份与恢复功能，现场免维护。

9、4-20mA输出、脉冲输出可根据现场需要随意切换，应用考虑更周全

10、智能一体化设计，能现场显示瞬时、累积流量以及仪表系数，仪表参数设定，内置温度压力传感器后，可对被测介质进行温压补偿

1. Simple structure, no movable parts, reliable long-term operation, high repeatability, and high measurement accuracy

2. Temperature compensation and pressure temperature can be freely selected to meet more on-site needs. The sensor has a unique anti vibration and anti-interference packaging process, which enhances on-site anti-interference ability

3. The sensor output is a pulse frequency, which is linear with the actual flow rate of the measured fluid, with zero drift and very stable performance

4. Built in comprehensive anti-interference multi-level protection circuit, effectively eliminating on-site vibration and power frequency interference

5. The installation method is flexible, and it can be installed horizontally, vertically, and at different angles according to the on-site process pipeline blockage

6. Low pressure loss, low operating costs, and more energy-saving significance. Advanced digital signal processing technology has a low lower limit and excellent anti vibration performance

7. Correction of instrument coefficient nonlinearity by software to improve measurement accuracy

8. Equipped with comprehensive data backup and recovery functions, on-site maintenance free.

9. 4-20mA output and pulse output can be switched freely according to on-site needs, with more comprehensive application considerations

10. Intelligent integrated design, capable of on-site display of instantaneous and cumulative flow rates as well as instrument coefficients, instrument parameter settings, and built-in temperature and pressure sensors for temperature and pressure compensation of the measured medium

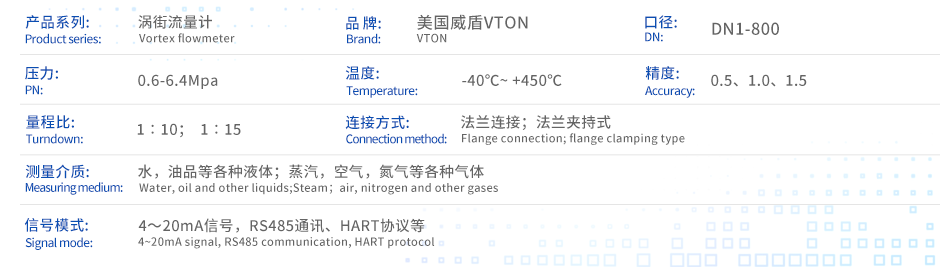

三、进口压缩空气流量计性能参数
