一、进口磁翻板液位计概述

进口磁翻板液位计（也可称为磁性浮子液位计）根据浮力原理和磁性耦合作用研制而成。当被测容器中的液位升降时，液位计本体管中的磁性浮子也随之升降，浮子内的永久磁钢通过磁耦合传递到磁翻柱指示器，驱动红、白翻柱翻转180°，当液位上升时翻柱由白色转变为红色，当液位下降时翻柱由红色转变为白色，指示器的红白交界处为容器内部液位的实际高度，从而实现液位清晰的指示。

The magnetic flap level gauge (also called a magnetic float level gauge) is developed based on the buoyancy principle and magnetic coupling. When the liquid level in the measured container rises and falls, the magnetic float in the body tube of the liquid level gauge also rises and falls. The permanent magnet in the float is transmitted to the magnetic flip column indicator through magnetic coupling, driving the red and white flip columns to flip 180 degrees. °, when the liquid level rises, the flip column changes from white to red, and when the liquid level drops, the flip column changes from red to white. The red and white junction of the indicator is the actual height of the liquid level inside the container, thereby achieving a clear liquid level. instruct.

二、进口磁翻板液位计特点

1、设计简单、坚固、耐用。磁翻柱显示无需电源。

2、主体管和显示部分在耐压、耐气上是隔离的。

3、可用于测量和显示腐蚀性、易燃性、毒性、强放射性、搅动的、污蚀的液体

4、使用耐强腐蚀性材质可用于工业生产几乎所有地方

5、耐压从真空到6.4Mpa，最高可到10Mpa。

6、适用温度范围可在-160℃到+450℃（液体)

1. Design simple, sturdy, and durable. Magnetic flip column display does not require power supply.

2. The main tube and display part are isolated in terms of pressure resistance and gas resistance.

3. Can be used to measure and display corrosive, flammable, toxic, highly radioactive, agitated, and corrosive liquids

4. The use of highly corrosion-resistant materials can be applied to almost all areas of industrial production

5. The pressure resistance ranges from vacuum to 6.4Mpa, with a maximum of 10Mpa.

6. The applicable temperature range can be from -160 ℃ to+450 ℃ (liquid)

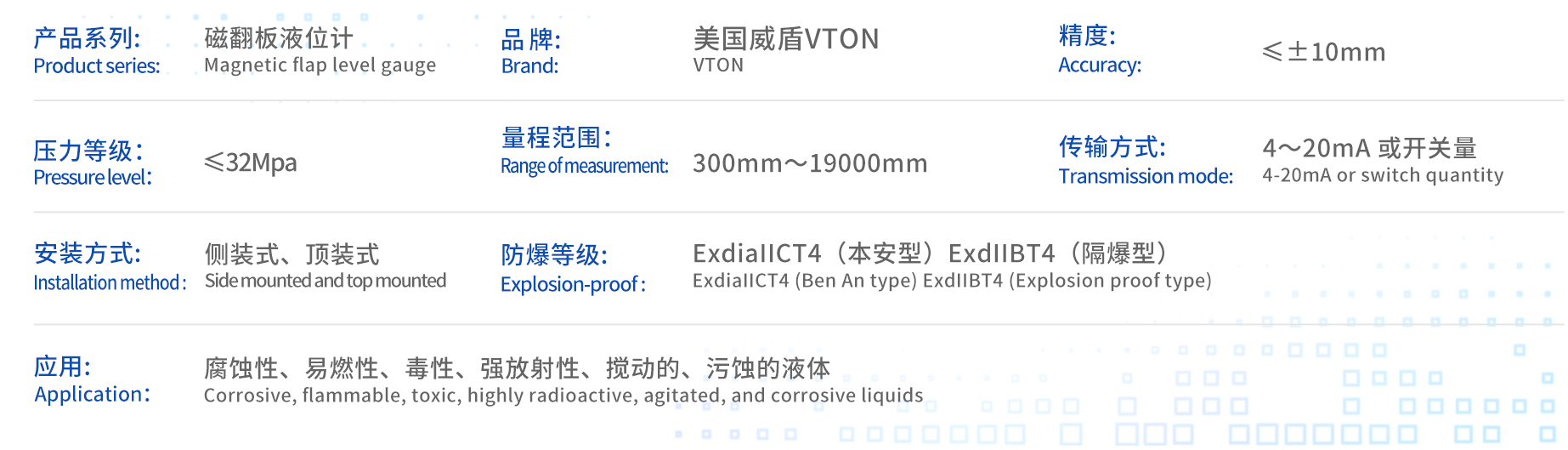

二、进口磁翻板液位计性能参数
