一、进口雷达物位计概述

进口雷达物位计采用微波脉冲的测量方法，并可在工业频率波段范围内正常使用，波束能量低，可安装于各种金属、非金属容器或管道内，对液体、浆料及颗粒料的物位进行非接触式连续测量。不受介电常数变化的影响，适用于粉尘、温度、压力变化大，有惰性气体及蒸汽存在的场合。

The radar level meter adopts the microwave pulse measurement method and can be used normally in the industrial frequency band range. The beam energy is low and can be installed in various metal and non-metal containers or pipes to detect liquids, slurries and granular materials. for non-contact continuous measurement. It is not affected by changes in dielectric constant and is suitable for situations where dust, temperature, and pressure change greatly, and inert gases and steam are present.

二、进口雷达物位计特点

1、接触测量，无磨损，无污染  天线尺寸小，便于安装

2、波长更短，倾斜的固体表面有更好的反射

3、测量盲区更小，小罐测量也有良好的效果

4、波束角小，能量集中，增强了回波能力的同时，又有利于避开干扰物

5、几乎不受大气中水蒸气、温度压力变化影响

6、严重粉尘环境仪表也能准确读取到真实物位回波

7、高信噪比，即使在波动的情况下也能获得更优的性能

1. Contact measurement, no wear, no pollution. The antenna size is small and easy to install

2. Shorter wavelength, better reflection on tilted solid surfaces

3. The measurement blind spot is smaller, and the small can measurement also has good results

4. Small beam angle and concentrated energy enhance the echo capability while also helping to avoid interfering objects

5. Almost unaffected by atmospheric water vapor, temperature and pressure changes

6. Instruments in severe dust environments can accurately read the true level echo

7. High signal-to-noise ratio, even in fluctuating conditions, can achieve better performance

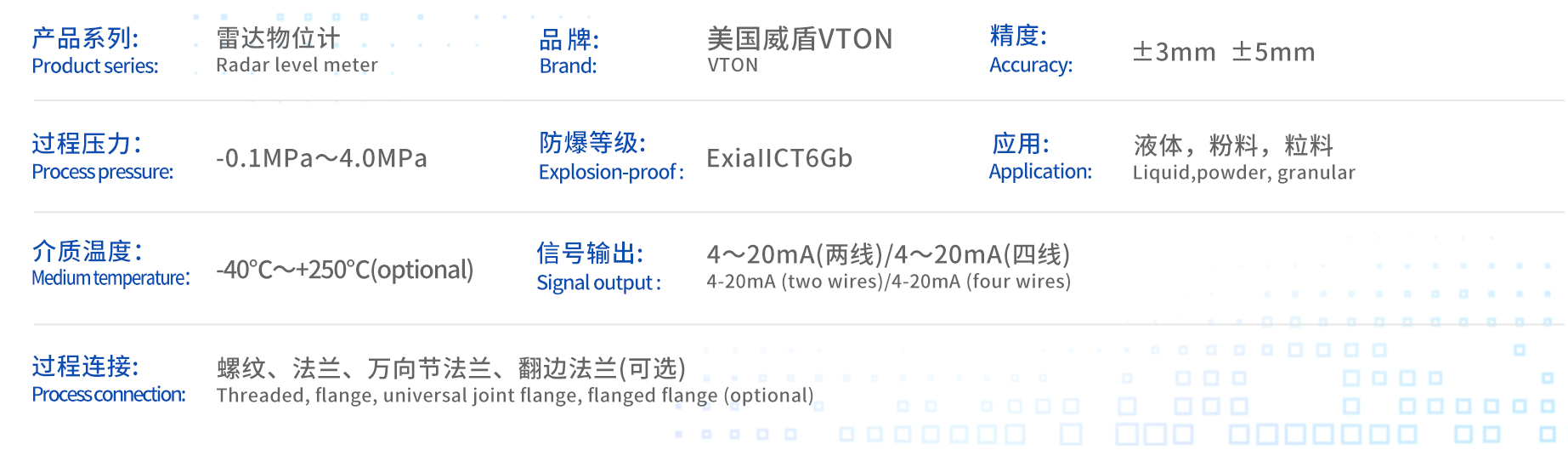

三、进口雷达物位计性能参数
