一、进口直通篮式过滤器产品概述

进口直通篮式过滤器，也叫篮式过滤器，直通过滤器，由桶式壳体、排污盖、滤芯、螺柱等组成。网眼总面积是入口管道面积的3-4倍，压差为0.05-0.15，压力在设计有不同。它比其它过滤器技术要求高，主要用于管道上，来处理管内高精度液体。

当液体通过主管进入滤蓝后，固体杂质颗粒被阻挡在滤蓝内，而洁净的流体通过滤篮、由过滤器出口排出。当需要清洗时，旋开主管底部螺塞，排净流体，拆卸法兰盖，清洗后重新装入即可。因此，使用维护极为方便。

straight through basket filter, also known as a basket filter, is composed of a bucket shell, a drain cover, a filter element, screws, and other components. The total mesh area is 3-4 times the area of the inlet pipeline, with a pressure difference of 0.05-0.15, and the pressure varies in the design. It has higher requirements than other filter technologies and is mainly used on pipelines to process high-precision liquids inside the pipes.

When the liquid enters the filter blue through the main pipe, solid impurity particles are blocked inside the filter blue, while the clean fluid is discharged through the filter basket and filter outlet. When cleaning is required, unscrew the bottom plug of the main pipe, drain the fluid, remove the flange cover, clean it, and reinstall it. Therefore, it is extremely convenient to use and maintain.

二、进口直通篮式过滤器工作原理

进口篮式直通过滤器是直接连入管道使用。在生产过程中，流体会随着管道流经直通过滤器，液体先通过桶体而后进入滤篮，流体从滤篮的缝隙中流出，直至过滤器的出口被排出，流体中的固体杂质颗粒为滤篮所阻挡，与流体分离完成过滤。过滤器使用一段时间后，固体杂质在滤篮中堆积，这时只要旋开主管底部的螺塞，将直通过滤器内的液体排净，拆卸法兰，清洗滤篮后重新装入，就能完成杂质的清理了。

The basket style straight through filter is directly connected to the pipeline for use. In the production process, the fluid will flow through the straight through filter along the pipeline. The liquid first passes through the barrel and then enters the filter basket. The fluid flows out from the gaps of the filter basket until the outlet of the filter is discharged. The solid impurities particles in the fluid are blocked by the filter basket and separated from the fluid to complete the filtration. After using the filter for a period of time, solid impurities accumulate in the filter basket. At this time, simply unscrew the screw plug at the bottom of the main pipe, drain the liquid directly into the filter, remove the flange, clean the filter basket, and reinstall it to complete the cleaning of impurities.

三、进口直通篮式过滤器产品特点

1、直通篮式过滤器过滤精度高，可根据客户需求配置过滤网的精细度。

2、直通篮式过滤器工作原理简单、结构也不复杂，容易安装、拆卸和维护。

3、直通篮式过滤器设备易损件少，无耗材，运行维护费用低，操作管理简单。

4、直通篮式过滤器稳定生产工艺流程，保护仪器仪表和机械设备，维护生产的安全和稳定。

5、直通篮式过滤器的核心部位是过滤器芯件，过滤芯由过滤器框和不锈钢钢丝网组成。

1. The straight through basket filter has high filtration accuracy and can configure the fineness of the filter screen according to customer needs.

2. The working principle of the straight through basket filter is simple, the structure is not complicated, and it is easy to install, disassemble, and maintain.

3. The direct basket filter equipment has fewer vulnerable parts, no consumables, low operation and maintenance costs, and simple operation and management.

4. The straight through basket filter stabilizes the production process, protects instruments and mechanical equipment, and maintains production safety and stability.

5. The core part of the straight through basket filter is the filter core, which is composed of a filter frame and stainless steel wire mesh.

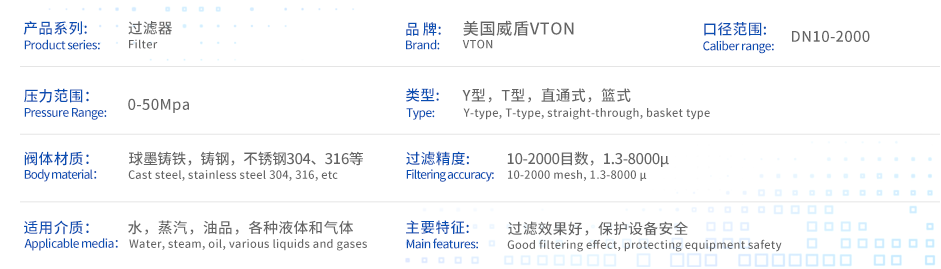

四、进口直通篮式过滤器性能参数

五、进口直通篮式过滤器尺寸图
