一、进口不锈钢卫生级过滤器产品概述

进口不锈钢卫生级过滤器，也叫卡箍快装卫生级过滤器，卫生级316L过滤器，食品级过滤器，制药厂过滤器，是指采用精制304或316不锈钢卫生级壳体，内外经高精度机械抛光，快装或法兰式结构，标准设计工作压力1.0MPa。可适用于空气和各种液体的除菌过滤。

Stainless steel sanitary grade filter, also known as clamp quick installation sanitary grade filter, sanitary grade 316L filter, food grade filter, pharmaceutical factory filter, refers to the use of refined 304 or 316 stainless steel sanitary grade shell, high-precision mechanical polishing inside and outside, quick installation or flange structure, standard design working pressure of 1.0MPa. Suitable for sterilization and filtration of air and various liquids.

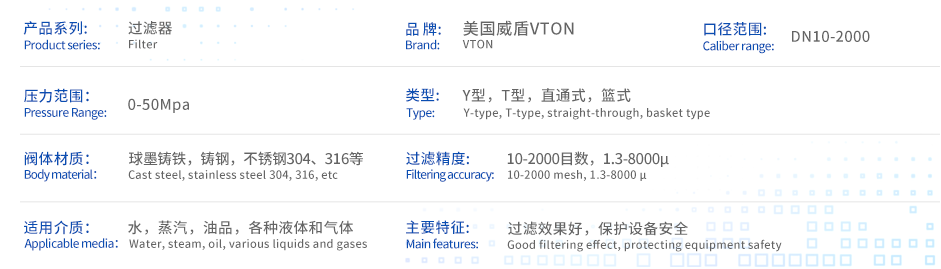

二、进口不锈钢卫生级过滤器技术参数

三、进口不锈钢卫生级过滤器产品特点

1、滤芯双O型圈（硅橡胶、氟橡胶）密封，确保气源100%得到过滤。

2、除菌滤芯为耐高温聚四氟乙烯膜（PTFE），内衬不锈钢支撑骨架，过滤精度为0.01μ。使用140℃洁净蒸汽定期灭菌，重复消毒能100%除去细菌、噬菌体。

3、材料符合美国药典22版生物安全性能要求。

4、具有其他同类产品不可比拟的高截流率、高流量、低压差热稳定性好与广泛化学相溶性等特点。

1. The filter element is sealed with dual O-rings (silicone rubber, fluororubber) to ensure 100% filtration of the air source.

2. The sterilization filter element is made of high-temperature resistant polytetrafluoroethylene membrane (PTFE), lined with stainless steel support frame, and has a filtration accuracy of 0.01 μ. Regularly sterilize with clean steam at 140 ℃, and repeat disinfection can remove bacteria and bacteriophages 100%.

3. The material meets the biosafety performance requirements of the 22nd edition of the United States Pharmacopeia.

4. It has unparalleled characteristics such as high flow rate, high flow rate, good thermal stability under low pressure difference, and wide chemical compatibility compared to other similar products.
