一、进口Y型衬氟过滤器产品概述

进口Y型衬氟过滤器，也叫衬四氟过滤器，衬氟Y型过滤器，是指阀体内腔和滤网全部衬氟塑料，Y型衬氟过滤器在几乎所有的强酸强碱和有机溶剂等介质中均摊能使用，其介质流量与阀门开度基本呈流线性递增，可用于控制阀的流量。

Y-shaped fluorine lined filter, also known as PTFE lined filter, refers to a valve body cavity and filter screen that are all lined with fluoroplastic. The Y-shaped fluorine lined filter can be used uniformly in almost all media such as strong acids, alkalis, and organic solvents. Its medium flow rate increases linearly with the valve opening, and can be used to control the flow rate of the valve.

二、进口Y型衬氟过滤器产品特征
1、整体式阀体设计
2、可更换的过滤内件
3、多种过滤结构设计
4、滤网精度18—500目可选
5、常规30目设计
6、又排放接口
7、标准法兰连接

1. Integral valve body design

2. Replaceable filter internals

3. Multiple filtering structure designs

4. Filter precision of 18-500 mesh optional

5. Conventional 30 mesh design

6. Emission interface again

7. Standard flange connection

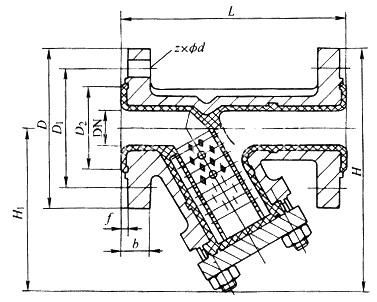

三、进口Y型衬氟过滤器产品结构图
