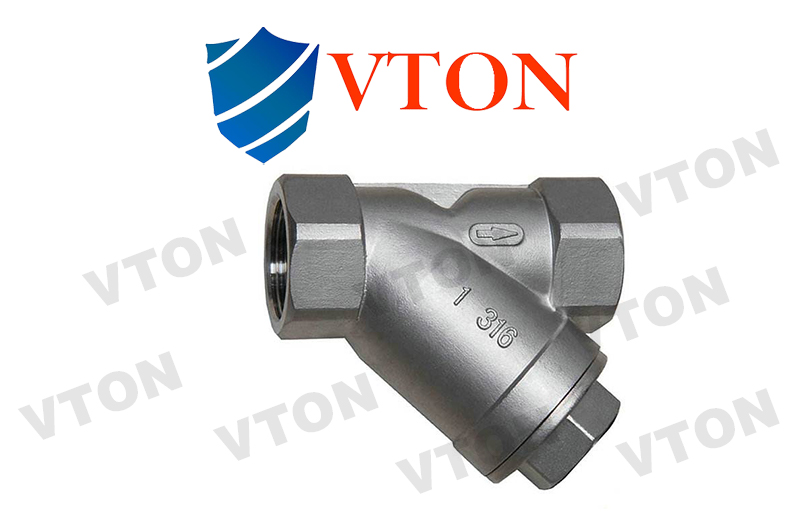

一、进口内螺纹Y型过滤器产品概述

进口内螺纹Y型过滤器，也叫内螺纹Y型除污器，丝扣Y型过滤器，内牙Y型过滤器，是指采用内螺纹（G螺纹，NPT螺纹，PT螺纹）的连接方式的过滤器，是输送介质管道上不可缺少的一种装置，通常安装在减压阀、泄压阀、定水位阀或其它设备的进口端，用来消除介质中的杂质，以保护阀门及设备的正常使用。当流体进入置有一定规格滤网的滤筒后，其杂质被阻挡，而清洁的滤液则由过滤器出口排出，当需要清洗时，只要将可拆卸的滤筒取出，处理后重新装入即可，因此，使用维护极为方便。

Internal thread Y-shaped filter, also known as internal thread Y-shaped dirt remover, threaded Y-shaped filter, internal thread Y-shaped filter, refers to a filter that uses internal thread (G thread, NPT thread, PT thread) connection method. It is an indispensable device on the transmission medium pipeline, usually installed at the inlet end of pressure reducing valves, relief valves, constant water level valves or other equipment to eliminate impurities in the medium and protect the normal use of valves and equipment. When the fluid enters the filter cartridge with a certain specification filter, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is needed, simply remove the detachable filter cartridge, process it, and reinstall it. Therefore, it is extremely convenient to use and maintain.

二、进口内螺纹Y型过滤器产品特点
1、内螺纹Y型过滤器抗污性强，排污方便；流通面积大，压力损失小；结构简单，体积小。
2、内螺纹Y型过滤器过滤网材质，有奥氏体304、316、316L。
4、内螺纹Y型过滤器连接形式：螺纹，性价比高

1. The internal thread Y-shaped filter has strong anti fouling properties and is easy to discharge; Large circulation area and low pressure loss; Simple structure and small size.

2. Internal thread Y-shaped filter mesh material, available in austenitic 304, 316, 316L.

4. Internal thread Y-shaped filter connection form: threaded, cost-effective

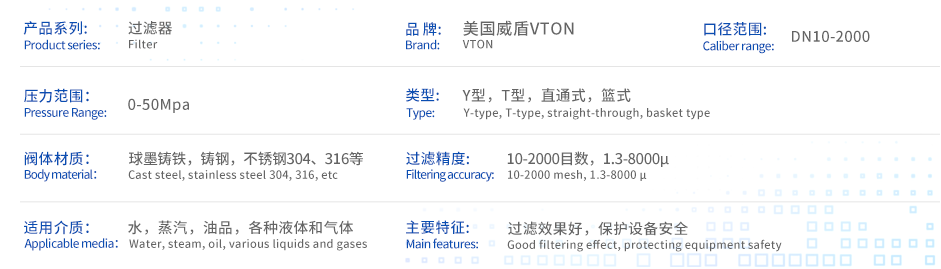

三、进口内螺纹Y型过滤器技术参数

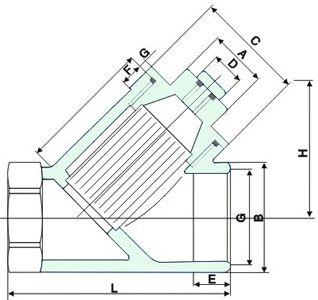

四、进口内螺纹Y型过滤器连接尺寸
