一、进口法兰Y型过滤器产品概述

进口法兰Y型过滤器，也叫进口法兰Y型除污器，进口Y型法兰过滤器，进口铸钢Y型过滤器，进口不锈钢Y型过滤器，是指采用铸钢或者不锈钢材质，连接方式为各种标志法兰的过滤器，是输送介质的管道系列不可缺少的一种装置，通常安装在减压阀、泄压阀、定水位阀或其它设备的进口端，用来消除介质中的杂质，以保护阀门及设备的正常使用。

美国威盾VTON法兰式Y型过滤器具有结构先进，阻力小，排污方便等特点。法兰式Y型过滤器适用介质可为水，油、气。可按用户要求制作滤网，其外型基本相同（Y型），内部件全部采用不锈钢，坚固耐用。当需要清洗时，只要将可拆卸的滤筒取出，去除滤出的杂质后，重新装入即可，使用维护极为方便。该过滤器体形小、滤眼细、阻力小、效果高、安装检修方便、成本低、并排污时间短，对一般小型号者，只需5-10分钟。

法兰式Y型过滤器一般通水网为18-30目/cm2，通气网为40-100目/cm2,通油网为100-300目/cm2。

Flange Y-shaped filter, also known as imported flange Y-shaped cleaner, imported Y-shaped flange filter, imported cast steel Y-shaped filter, imported stainless steel Y-shaped filter, refers to a filter made of cast steel or stainless steel material, connected by various marked flanges. It is an indispensable device in the pipeline series for conveying media, usually installed at the inlet end of pressure reducing valves, relief valves, constant water level valves or other equipment to eliminate impurities in the medium and protect the normal use of valves and equipment.

The American Weidun VTON flange Y-shaped filter has the characteristics of advanced structure, low resistance, and convenient discharge. The flange type Y-shaped filter is suitable for media such as water, oil, and gas. Filter screens can be made according to user requirements, with a similar appearance (Y-shaped) and all internal components made of stainless steel, which is sturdy and durable. When cleaning is needed, simply remove the detachable filter cartridge, remove the impurities filtered out, and reinstall it. It is extremely convenient to use and maintain. This filter has a small size, fine filter eyes, low resistance, high efficiency, easy installation and maintenance, low cost, and short discharge time. For general small-sized models, it only takes 5-10 minutes.

The flange type Y-shaped filter generally has a water mesh of 18-30 mesh/cm2, a ventilation mesh of 40-100 mesh/cm2, and an oil mesh of 100-300 mesh/cm2.

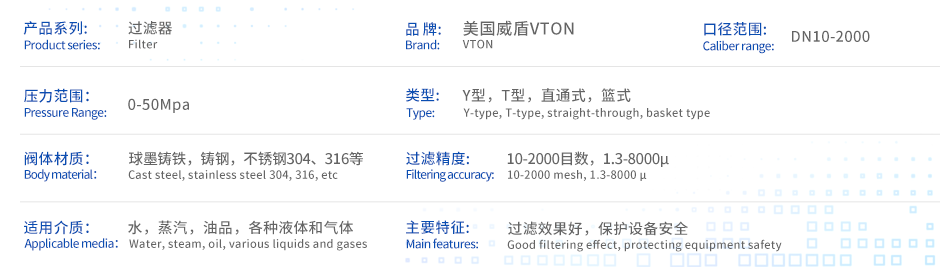

二、进口法兰Y型过滤器技术参数

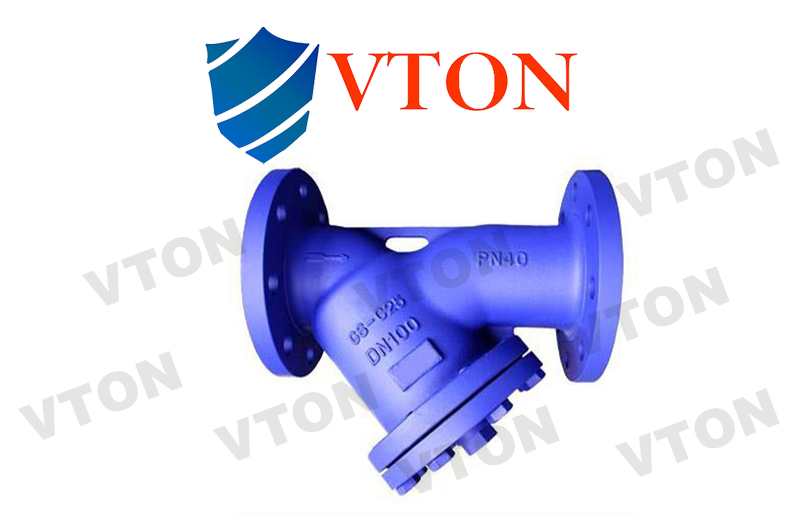

三、进口法兰Y型过滤器外形图
