一、进口德标Y型过滤器产品概述

进口德标Y型过滤器，也叫DIN过滤器，DIN除污器，DIN型Y型过滤器，是指设计标准 DIN EN13709,结构长度 DIN EN588-1,法兰标准 DIN EN1092-1,试验标准 DIN EN12266的过滤器，是输送介质的管道系统不可缺少的一种过滤装置，Y型过滤器通常安装在减压阀、泄压阀、定水位阀或其它设备的进口端，用来清除介质中的杂质，以保护阀门及设备的正常使用。

The German standard Y-shaped filter, also known as DIN filter, DIN cleaner, DIN Y-shaped filter, refers to a filter designed according to the DIN EN13709 standard, with a structural length of DIN EN588-1, a flange standard of DIN EN1092-1, and a testing standard of DIN EN12266. It is an indispensable filtering device for pipeline systems that transport media. Y-shaped filters are usually installed at the inlet end of pressure reducing valves, relief valves, constant water level valves, or other equipment to remove impurities from the media and protect the normal use of valves and equipment.

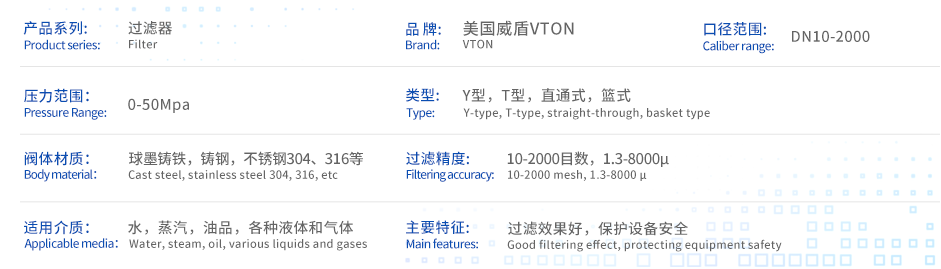

二、进口德标Y型过滤器技术参数

三、进口德标Y型过滤器特点

1、德标Y型过滤器抗污性强，排污方便；流通面积大，压力损失小；结构简单，体积小。重量轻。
2、德标Y型过滤器滤芯网材质均为全不锈钢制作，耐腐蚀性强，使用寿命长。
3、德标Y型过滤器过滤网密度：为l0—120目，适用范围广，介质：蒸汽、空气、水、油品、或根据用户要求定做。
4、德标Y型过滤器可带伸缩，拉伸长度。最大位置可移伸100mm。有利于安装方便。提高工作效率。

1. The German standard Y-shaped filter has strong anti fouling properties and is easy to discharge; Large circulation area and low pressure loss; Simple structure and small size. Lightweight.

2. The material of the German standard Y-shaped filter element mesh is all made of stainless steel, which has strong corrosion resistance and a long service life.

3. German standard Y-shaped filter mesh density: 10-120 mesh, widely applicable, media: steam, air, water, oil, or customized according to user requirements.

4. The German standard Y-shaped filter can be extended and stretched in length. The maximum position can be extended by 100mm. Beneficial for easy installation. Improve work efficiency.

四、进口德标Y型过滤器尺寸图
