一、进口美标Y型过滤器产品概述

进口美标Y型过滤器，也叫美标法兰过滤器，美标磅级过滤器，美标Y型除污器，150LB过滤器，300LB过滤器，是指按美国标准设计和制造的过滤器，法兰有美标150LB,300LB,600LB,900LB,1500LB，属于管道粗过滤器系列，也可用于气体或其他介质大颗粒物过滤。安装在管道上能除去流体中的较大固体杂质，使机器设备，包括压缩机、泵等、仪表能正常工作和运转，达到稳定工艺过程，保障安全生产的作用。

The American standard Y-type filter, also known as the American standard flange filter, American standard pound filter, American standard Y-type dirt remover, 150LB filter, 300LB filter, refers to a filter designed and manufactured according to American standards. The flange includes American standard 150LB, 300LB, 600LB, 900LB, 1500LB, belonging to the pipeline coarse filter series, and can also be used for filtering large particles in gas or other media. Installed on pipelines, it can remove large solid impurities from fluids, enabling machinery and equipment, including compressors, pumps, and instruments, to work and operate normally, achieving stable process and ensuring safe production.

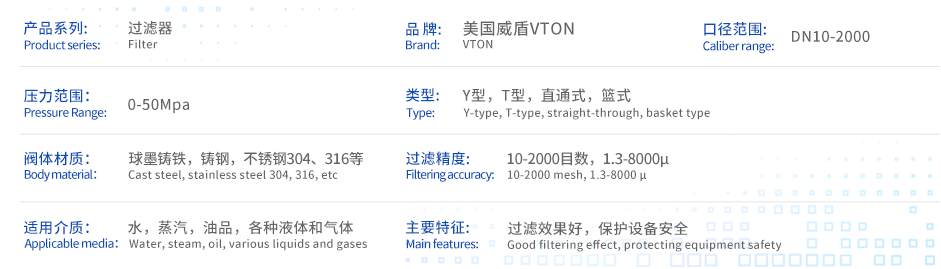

二、进口美标Y型过滤器技术参数

三、进口美标Y型过滤器特征

1、进出口通径:原则上过滤器的进出口通径不应小于相配套的泵的进口通径,一般与进口管路口径一致。

2、公称压力:按照过滤管路可能出现的最高压力确定过滤器的压力等级。

3、孔目数的选择:主要考虑需拦截的杂质粒径依据介质流程工艺要求而定。各种规格丝网可拦截的粒径尺寸查下表“滤网规格”。

4、过滤器材质:过滤器的材质一般选择与所连接的工艺管道材质相同,对于不同的服役条件可考虑选择铸铁、碳钢、低合金钢或不锈钢材质的过滤器。

1. Inlet and outlet diameter: In principle, the inlet and outlet diameter of the filter should not be smaller than the inlet diameter of the matching pump, generally consistent with the diameter of the inlet pipeline.

2. Nominal pressure: Determine the pressure rating of the filter based on the maximum pressure that may occur in the filtering pipeline.

3. The selection of pore size: mainly considers the particle size of impurities to be intercepted, which depends on the process requirements of the medium flow. The particle size that can be intercepted by various specifications of wire mesh can be found in the table "Filter Screen Specifications".

4. Filter material: The material of the filter is generally chosen to be the same as the material of the connected process pipeline. For different service conditions, filters made of cast iron, carbon steel, low-alloy steel, or stainless steel can be considered.

四、进口美标Y型过滤器尺寸图

五、进口美标Y型过滤器维修保养

1、过滤器的核心部位是过滤器芯件，过滤芯由过滤器框和不锈钢钢丝网组成，不锈钢钢丝网属易损件，需特别保护。

2、当过滤器工作一段时间后，过滤器芯内沉淀了一定的杂质，这时压力降增大，流速会下降，需及时清除过滤器芯内的杂质。

3、清洗杂质时，特别注意过滤芯上的不锈钢钢丝网不能变形或损坏。否则，再装上去的过滤器，过滤后介质的纯度达不到设计要求，压缩机、泵、仪表等设备会遭到破坏。

4、如发现不锈钢钢丝网变形或损坏，需马上更换。

1. The core part of the filter is the filter element, which is composed of a filter frame and stainless steel wire mesh. Stainless steel wire mesh is a vulnerable part and requires special protection.

2. After the filter has been working for a period of time, a certain amount of impurities settle in the filter core. At this time, the pressure drop increases and the flow rate decreases. It is necessary to remove the impurities in the filter core in a timely manner.

3. When cleaning impurities, pay special attention to ensure that the stainless steel wire mesh on the filter element is not deformed or damaged. Otherwise, if the filter is installed again, the purity of the filtered medium will not meet the design requirements, and equipment such as compressors, pumps, and instruments will be damaged.

4. If the stainless steel wire mesh is found to be deformed or damaged, it needs to be replaced immediately.
