一、进口智能型电磁流量计概述

进口智能型电磁流量计由传感器和转换器两部分构成。它是基于法拉第电磁感应定律工作的，用来测量电导率大于5μS/cm导电液体的体积流量，是一种测量导电介质体积流量的感应式仪表。除可测量一般导电液体的体积流量外，还可用于测量强酸强碱等强腐蚀液体和泥浆、矿浆、纸浆等均匀的液固两相悬浮液体的体积流量。美国威盾VTON进口智能型电磁流量计广泛应用于石油、化工、冶金、轻纺、造纸、环保、食品等工业部门及市政管理，水利建设、河流疏浚等领域的流量计量。

The intelligent electromagnetic flowmeter consists of two parts: a sensor and a converter. It is based on Faraday's law of electromagnetic induction and is used to measure the volume flow rate of conductive liquids with a conductivity greater than 5 μ S/cm. It is an induction type instrument for measuring the volume flow rate of conductive media. In addition to measuring the volume flow rate of general conductive liquids, it can also be used to measure the volume flow rate of strong corrosive liquids such as strong acids and alkalis, as well as homogeneous liquid-solid two-phase suspensions such as mud, slurry, and pulp. Intelligent electromagnetic flow meters are widely used in industrial sectors such as petroleum, chemical industry, metallurgy, light textile, papermaking, environmental protection, food, municipal management, water conservancy construction, river dredging, and other fields for flow measurement.

二、进口智能型电磁流量计的产品特点

1、全数字量处理，抗干扰能力强，测量可靠，精度高、流量测量范围可达150：1

2、超低EMI开关电源，适用电源电压变化范围大，抗EMI性能好。

3、采用16位嵌入式微处理器，运算速度快, 精度高，可编程频率低频矩形波励磁，提高了流量测量的稳定性，功耗低。

4、采用SMD器件和表面贴装（SMT）技术，电路可靠性高。

5、管道内无可动部件，无阻流部件，测量中几乎没有附加压力损失。

6、在现场可根据用户实际需要在线修改量程。

7、测量结果与流速分布，流体压力，温度、密度、粘度等物理参数无关。

8、高清晰度背光LCD显示，全中文菜单操作，使用方便，操作简单，易学易懂。

9、具有RS485、RS232、Hart和Modbus等数字通讯信号输出。（选配）

10、具有自检与自论断功能。

11、小时总量计录功能，以小时为单位记录流量总量，适用于分时计量制（选配）

12、内部具有三个积算器可分别显示正向累计量反向累计量及差值积算量，内部设有不掉电始终，可记录16次掉电时间。（选配）

13、红外手持操作器，115KHZ通讯速率，远距离非接触操作转换器所有功能（选配）

1. Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, and flow measurement range up to 150:1

2. Ultra low EMI switching power supply, suitable for a wide range of power supply voltage changes, with good EMI resistance performance.

3. Using a 16 bit embedded microprocessor, it has fast computing speed, high accuracy, programmable frequency low-frequency rectangular wave excitation, improving the stability of flow measurement and low power consumption.

4. Using SMD devices and surface mount (SMT) technology, the circuit has high reliability.

5. There are no movable components or flow blocking components inside the pipeline, and there is almost no additional pressure loss during measurement.

6. On site, the range can be modified online according to the actual needs of the user.

7. The measurement results are independent of physical parameters such as flow velocity distribution, fluid pressure, temperature, density, viscosity, etc.

8. High definition backlit LCD display, all Chinese menu operation, convenient to use, simple to operate, easy to learn and understand.

9. Equipped with digital communication signal outputs such as RS485, RS232, Hart, and Modbus. (Optional)

10. Equipped with self inspection and self judgment functions.

11. Hourly total volume recording function, recording the total flow volume in hours, suitable for time-of-use measurement system (optional)

12. There are three integrators inside that can display the forward cumulative quantity, reverse cumulative quantity, and difference cumulative quantity respectively. There is a non power-off timer inside that can record 16 power-off times. (Optional)

13. Infrared handheld operator, 115KHZ communication speed, remote non-contact operation of all converter functions (optional)

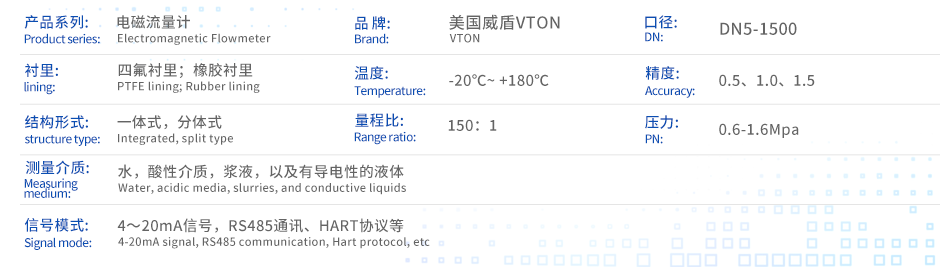

三、进口智能型电磁流量计技术参数
