一、进口高压涡轮流量计概述

高压涡轮流量计是指用于高压流体测量流量的仪器，压力有PN40-400,压力可达40Mpa，具有结构简单、轻巧、精度高、复现性好、反应灵敏，安装维护使用方便等特点的新一代涡轮流量计，广泛用于测量封闭管道中与不锈钢1Cr18Ni9Ti、2Cr13及刚玉Al2O3、硬质合金不起腐蚀作用，且无纤维、颗粒等杂质，工作温度下运动粘度小于5×10-6m2/s的液体，对于运动粘度大于5×10-6m2/s的液体，可对流量计进行实液标定后使用。若与具有特殊功能的显示仪表配套，还可以进行定量控制、超量报警等，是流量计量和节能的理想仪表。

该类涡轮流量产品本身不具备现场显示功能，仅将流量信号以脉冲的形式远传输出。仪表价格低廉，集成度高，体积小巧，特别适用于与二次显示仪、PLC、DCS等计算机控制系统配合使用。

High pressure turbine flowmeter refers to an instrument used for measuring flow rate of high-pressure fluids, with a pressure range of PN40-400 and a pressure of up to 40Mpa. It is a new generation turbine flowmeter with the characteristics of simple structure, lightweight, high accuracy, good reproducibility, sensitive response, and easy installation, maintenance, and use. It is widely used for measuring closed pipelines. It does not corrode stainless steel 1Cr18Ni9Ti, 2Cr13, corundum Al2O3, and hard alloys, and is free of impurities such as fibers and particles. It can be used for liquids with a kinematic viscosity less than 5 × 10-6m2/s at working temperature. For liquids with a kinematic viscosity greater than 5 × 10-6m2/s, the flowmeter can be calibrated for real liquid use. If paired with display instruments with special functions, it can also perform quantitative control, over limit alarm, etc., making it an ideal instrument for flow measurement and energy conservation.

This type of turbine flow product itself does not have on-site display function, and only transmits the flow signal in the form of pulses for remote output. The instrument is inexpensive, highly integrated, and compact in size, making it particularly suitable for use with computer control systems such as secondary displays, PLCs, and DCS.

二、进口高压涡轮流量计产品特点

1.高精度，一般可达±1%R、±0.5%R，高精度型可达±0.2%R；

2.重复性好，短期重复性可达0.05%~0.2%,正是由于具有良好的重复性，如经常校准或在线校准可得到极高的jing que度，在贸易结算中是优先选用的流量计；

3.输出脉冲频率信号，适于总量计量及与计算机连接，无零点漂移，抗干扰能力强；

4.可获得很高的频率信号（3-4kHz），信号分辨力强；

5.范围度宽，中大口径可达1:20，小口径为1:10；

6.结构紧凑轻巧，安装维护方便，流通能力大；

7.适用高压测量，仪表表体上不必开孔，易制成高压型仪表；

8.专用型传感器类型多，可根据用户特殊需要设计为各类专用型传感器，例如低温型、双向型、井下型、混砂专用型等；

9.可制成插入型，适用于大口径测量，压力损失小，价格低，可不断流取出，安装维护方便。

1. High precision, generally up to ± 1% R, ± 0.5% R, high-precision models up to ± 0.2% R;

2. Good repeatability, with a short-term repeatability of 0.05%~0.2%. It is precisely because of its good repeatability, such as frequent calibration or online calibration, that extremely high precision can be achieved, making it a preferred flow meter in trade settlement;

3. Output pulse frequency signal, suitable for total quantity measurement and computer connection, without zero drift, strong anti-interference ability;

4. It can obtain a high frequency signal (3-4kHz) with strong signal resolution;

5. Wide range, with medium to large diameters up to 1:20 and small diameters up to 1:10;

6. Compact and lightweight structure, easy installation and maintenance, and large circulation capacity;

7. Suitable for high-pressure measurement, there is no need to open holes on the instrument body, making it easy to make high-pressure instruments;

8. There are various types of specialized sensors, which can be designed according to the special needs of users, such as low-temperature, bidirectional, downhole, and sand mixing specialized sensors;

9. It can be made into an insertion type, suitable for large-diameter measurement, with small pressure loss, low price, and can be taken out without interruption, making installation and maintenance convenient.

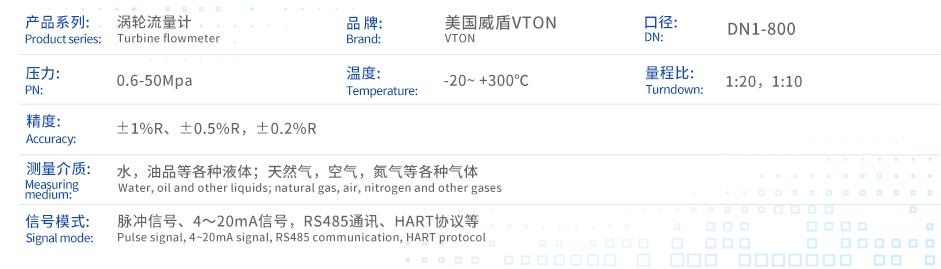

三、进口高压涡轮流量计基本性能参数
