一、进口汽水分离器产品概述

进口汽水分离器，Steam water separator，也叫蒸汽汽水分离器，汽水分开器，分离冷凝水设备，是利用蒸汽流向急剧转换方式、将蒸汽和蒸汽中含有的悬浮状水滴分离开，提高了产品质量和生产效率。
1.为蒸汽设备提供高干度蒸汽，送往用汽设备，提高设备的热效率，降低管道内的冲击力。
2.并防止水击，而分离出来的凝结水，由分离器下部的疏水阀排除。
3.UFS2型汽水分离器也适用于从压缩空气中分离凝结水。

Soda water separator, Steam water separator， Also known as steam water separator, steam water separator, and condensate water separation equipment, it utilizes a rapid change in steam flow direction to separate steam and suspended water droplets contained in steam, improving product quality and production efficiency.

1. Provide high dryness steam to steam equipment, send it to steam consuming equipment, improve the thermal efficiency of the equipment, and reduce the impact force inside the pipeline.

2. And prevent water hammer, and the separated condensate is discharged by the drain valve at the bottom of the separator.

3. The UFS2 steam water separator is also suitable for separating condensate from compressed air.

二、进口汽水分离器工作原理

1、CF41型汽水分离器的工作原理是使蒸汽或压缩空气在流动中突然改变方向,将蒸汽或压缩空气中含有的水滴分离出来,减少蒸汽或压缩空气中的含水量。分离出的水滴集聚在分离器下面,通过另配的疏水阀排出。汽水分离器能保证用汽设备所用蒸汽或空中的干燥性，提高用汽设备的工作效率，延长设备的使用寿命。

2、UFS型汽水分离器是利用蒸汽流向急剧转换方式、将蒸汽和蒸汽中含有的悬浮状水滴分离开，提高了产品质量和生产效率。为蒸汽设备提供高干度蒸汽，送往用汽设备，提高设备的热效率; 并防止水击，而分离出来的凝结水，由分离器下部的疏水阀排出; UFS2型汽水分离器也适用于从压缩空气中分离凝结水。

1. The working principle of CF41 steam water separator is to suddenly change the direction of steam or compressed air during flow, separate the water droplets contained in steam or compressed air, and reduce the water content in steam or compressed air. The separated water droplets gather under the separator and are discharged through a separate drain valve. A steam water separator can ensure the dryness of the steam or air used by steam equipment, improve the working efficiency of steam equipment, and extend the service life of the equipment.

2. The UFS type steam water separator utilizes a rapid change in steam flow direction to separate steam and suspended water droplets contained in steam, improving product quality and production efficiency. Provide high dryness steam for steam equipment, send it to steam consuming equipment, and improve the thermal efficiency of the equipment; And prevent water hammer, and the separated condensate is discharged by the drain valve at the bottom of the separator; The UFS2 steam water separator is also suitable for separating condensate from compressed air.

三、进口汽水分离器性能特点

1、CF41型性能特点

根据汽压、水压变化可自动调节进汽量，克服了振动、噪音等缺陷。

利用蒸汽升温的同时，可实现增压，大大减小水泵电机功率，达到节能的目的。

节能、热效率高。蒸汽得以充分利用，与传统换热系统相比，热效率达100%，节约蒸汽20%以上。

寿命长，免维护，寿命可长达十五年。

无需人员值班，节约人工费。广泛适用于居民住宅、商务办公楼、宾馆、医院、洗浴中心的采暖和供热水系统以及电力、化工、橡胶、食品、造纸、制药等行业。

2、UFS型性能特点

UFS型汽水分离器用于蒸汽、压缩空气及其它气体系统可除去蒸汽、空气或气体等系统中所含水分。

汽水分离器将分离出的水滴，沿倾斜管壁聚集后由一专门排水口排出。因此，汽水分离器能确保设备所使用蒸汽的干燥性，这一点对于提高设备生产力和产品质量尤其重要，并可延长设备及其控制阀的使用寿命。

本产品是挡板式分离器用于分离蒸汽、压缩空气和气体系统中内含的夜滴，阀内有梯形挡板，分离效率高。配上绝热套可提高分离器此分离器安装在水平管道上且排水口向下，为了保证分离的液体尽快排走，排液口要连接合适的排液阀或蒸汽疏水阀。

此分离器安装在水平管道上且排水口向下，为了保证分离的液体尽快排走，排液口要连接合适的排液阀或蒸汽疏水阀。

1. Performance characteristics of CF41 type

According to changes in steam pressure and water pressure, the inlet steam volume can be automatically adjusted, overcoming defects such as vibration and noise.

By using steam to heat up, pressure can be increased, greatly reducing the power of the water pump motor and achieving energy-saving goals.

Energy saving and high thermal efficiency. Steam can be fully utilized, with a thermal efficiency of 100% and steam savings of over 20% compared to traditional heat exchange systems.

Long lifespan, maintenance free, with a lifespan of up to fifteen years.

No need for personnel on duty, saving labor costs. Widely suitable for heating and hot water supply systems in residential buildings, commercial office buildings, hotels, hospitals, bathing centers, as well as industries such as electricity, chemical, rubber, food, papermaking, pharmaceuticals, etc.

2. UFS type performance characteristics

The UFS type steam water separator is used in steam, compressed air, and other gas systems to remove moisture from steam, air, or gas systems.

The water droplets separated by the soda water separator are collected along the inclined pipe wall and discharged through a dedicated drainage outlet. Therefore, the steam separator can ensure the dryness of the steam used in the equipment, which is particularly important for improving equipment productivity and product quality, and can extend the service life of the equipment and its control valves.

This product is a baffle type separator used to separate night droplets contained in steam, compressed air, and gas systems. There is a trapezoidal baffle inside the valve, which has high separation efficiency. Wearing an insulation sleeve can improve the separator. This separator is installed on a horizontal pipeline with the drainage outlet facing downwards. To ensure that the separated liquid is discharged as soon as possible, the drainage outlet should be connected to a suitable drainage valve or steam trap valve.

This separator is installed on a horizontal pipeline with the drainage outlet facing downwards. In order to ensure that the separated liquid is discharged as soon as possible, the drainage outlet should be connected to a suitable drainage valve or steam trap valve.

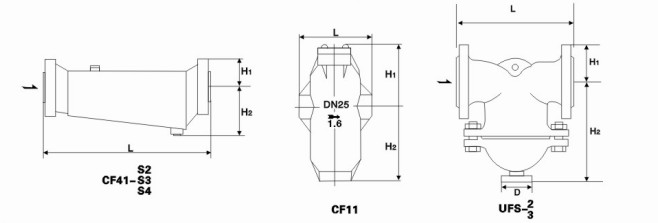

四、、进口汽水分离器外观图
