一、进口钟型浮子式疏水阀产品概述

进口钟型浮子式疏水阀，The bell shaped float type steam trap，也叫采用钟型浮子式疏水器，钟型浮子式蒸汽疏水阀，钟型浮子式蒸汽疏水器，SCCV（自动定心，自动关闭）系统。利用阀内的压力和凝结水流动的吸力使阀芯关闭，阀芯在关闭过程中具有缓冲作用，减少了阀芯阀座间的磨损。用于蒸汽主管、医院消毒器、浓缩装置、圆筒式干燥机、热风式干燥机、硫化机、热交换器、分汽缸、蒸馏器等。超小型、重量轻的ES5型倒吊桶疏水阀最适用于染声机、洗涤机器、空调机等。全不锈钢的ESU5型倒吊桶疏水阀专为医院用汽设备、食品工业制造。

Bell shaped float type drain valve, The bell shaped float type steam trap， Also known as using bell float steam trap, bell float steam trap, bell float steam trap, SCCV (automatic centering, automatic closing) system. By utilizing the pressure inside the valve and the suction force of the condensed water flow, the valve core is closed. The valve core has a buffering effect during the closing process, reducing wear between the valve core and the valve seat. Used for steam main pipes, hospital disinfectors, concentration devices, cylindrical dryers, hot air dryers, vulcanization machines, heat exchangers, dividing cylinders, distillers, etc. The ultra small and lightweight ES5 inverted bucket drain valve is most suitable for dyeing machines, washing machines, air conditioning machines, etc. The all stainless steel ESU5 inverted bucket drain valve is specially manufactured for hospital steam equipment and the food industry.

二、进口钟型浮子式疏水阀产品特征

1、对凝结水的发生量适应性强，即可间歇排放，又可连续排放。
2、无与伦比的SCCV关闭系统，独特设计，具有补偿杠杆机械产生的误差，避免关闭时的钢性碰撞，关闭十分可靠，寿命长久。
3、内部零件全部采用不锈钢制造，并且安装在阀盖上，维修保养极为方便。
4、钟型浮子式疏水阀背压率高。（90％）。
5、汽水分离可靠（水汽经U型通道从阀下部进入），阀内始终处于水封状态，有效阻止蒸汽泄漏。
6、敝口形的浮子抗水击。吊桶上设有溢出排气孔，可有效防止蒸汽汽锁、空气气堵现象。（非凝结性的高温空气也可排除）。

1. Strong adaptability to the occurrence of condensate, it can be discharged intermittently or continuously.

2. Unparalleled SCCV closing system, unique design, with compensating lever mechanical errors, avoiding steel collision during closing, highly reliable closing, and long service life.

3. All internal components are made of stainless steel and installed on the valve cover, making maintenance and repair extremely convenient.

4. The back pressure rate of the bell float drain valve is high. (90%).

5. The separation of steam and water is reliable (water vapor enters from the bottom of the valve through a U-shaped channel), and the valve is always in a water sealed state, effectively preventing steam leakage.

6. The mouth shaped float is resistant to water hammer. There are overflow exhaust holes on the bucket, which can effectively prevent steam lock and air blockage. (Non condensable high-temperature air can also be eliminated).

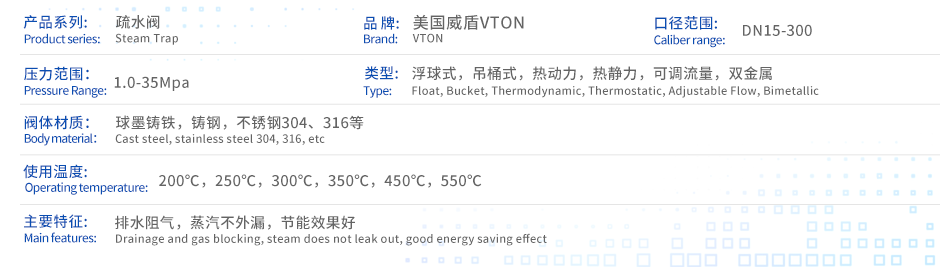

三、进口钟型浮子式疏水阀技术参数
