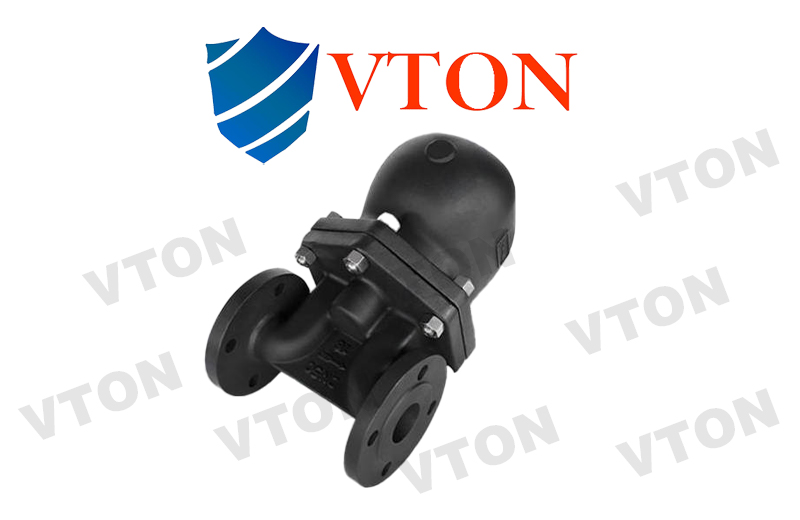

一、进口杠杆浮球式疏水阀产品概述

进口杠杆浮球式疏水阀，Lever ball float type steam trap，也叫杠杆式疏水器，杠杆式蒸汽疏水阀，杠杆式蒸汽疏水阀，杠杆式蒸汽疏水器，原理与自由浮球式基本相同，内部结构是浮球连接杠杆带动阀心，随凝结水的液位升降进行开关阀门的疏水阀。杠杆浮球式疏水阀利用双阀座增加凝结水排量，可达到体积小排量大，最大疏水量达100吨/小时，是大型加热设备最理想的疏水阀

杠杆浮球式疏水阀启动时自动排空气装置迅速排除系统中不凝结气体，当蒸汽和热冷凝结水进入后，阀腔内温度随着升高，排空气装置自动关闭，浮球根据冷凝结水水位的变化而作升降，带动杠杆调节阀座孔的开度，连续排放凝结水。当凝结水停止进入时，浮球靠自重下降，驱使杠杆带动阀芯关闭排水阀座孔。

美国威盾VTON杠杆浮球式疏水阀广泛用于工业蒸汽加热设备，各种大型热交换器及干燥机、夹套锅等，特别应用于冷凝水特大排量在的工作场合。

Lever float type drain valve, Lever ball float type steam trap， Also known as lever type steam trap, lever type steam trap, lever type steam trap, lever type steam trap, the principle is basically the same as the free floating ball type. The internal structure is that the floating ball is connected to the lever to drive the valve core, and the drain valve opens and closes as the condensate level rises and falls. The lever floating ball drain valve uses double valve seats to increase the condensate flow rate, which can achieve small volume and large flow rate, with a maximum drainage capacity of 100 tons/hour. It is the most ideal drain valve for large heating equipment

When the lever floating ball drain valve is started, the automatic air exhaust device quickly removes non condensable gases from the system. When steam and hot condensed water enter, the temperature inside the valve chamber increases and the air exhaust device automatically closes. The floating ball rises and falls according to the change in condensed water level, driving the lever to adjust the opening of the valve seat hole and continuously discharge condensed water. When the condensate stops entering, the floating ball descends by its own weight, driving the lever to drive the valve core to close the drainage valve seat hole.

VTON lever floating ball drain valves are widely used in industrial steam heating equipment, various large heat exchangers, dryers, jacketed pots, etc., especially in working environments with extremely large condensate displacement.

二、进口杠杆浮球式疏水阀产品特征

1、采用轧装阀机械，具有优良的密封性和耐久性。

2、平衡双阀座设计，比一般的疏水阀体积小而排量大，特大排量场和更能发挥优越性。

3、杠杆浮球式疏水阀内装双金属片空气自动排放阀，可防止空气气堵和蒸汽汽锁。

4、杠杆浮球式疏水阀采用独特的U型双金属通气口，可大大缩短设备起动时间。

5、全部部件安装在阀盖上，阀无需从配管上卸下，就可维修保养，简单方便。

6、此超大排量型蒸汽疏水阀，在整个工作压力范围内无需调整和更换内件，即可充分排除大量的疑结水。排水过冷度可达0℃，特别适合用于疑结水量大的工作场合。

1. Adopting rolling valve machinery, it has excellent sealing and durability.

2. The balanced dual valve seat design has a smaller volume and larger displacement than ordinary drain valves, and can better play its advantages with a larger displacement field.

3. The lever float type drain valve is equipped with a bimetallic automatic air discharge valve, which can prevent air blockage and steam lock.

4. The lever floating ball drain valve adopts a unique U-shaped bimetallic vent, which can greatly shorten the equipment start-up time.

5. All components are installed on the valve cover, and the valve can be repaired and maintained without the need to be removed from the piping, which is simple and convenient.

6. This ultra large displacement steam trap valve can fully eliminate a large amount of suspected water accumulation without adjusting or replacing internal components throughout the entire working pressure range. The drainage subcooling can reach 0 ℃, making it particularly suitable for work environments with high suspected water content.

三、进口杠杆浮球式疏水阀尺寸图
