一、进口气动卡箍隔膜阀产品概述

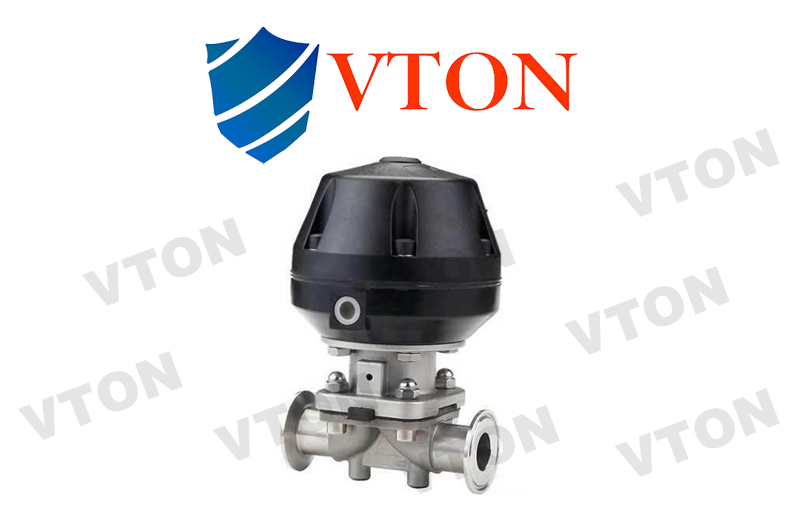

进口气动卡箍隔膜阀，Pneumatic clamp diaphragm valve，是指由气动执行器和卫生级卡箍隔膜阀两部分组成，以压缩空气为动力，实现对工艺管道中流体介质流量的开关和调节，隔膜阀镜面抛光，达到食品卫生级的标准，采用卡箍快装连接，安装方便，经久耐用。

美国威盾VTON气动卫生级隔膜阀主要产品有气动卫生级快装隔膜阀，气动卫生级卡箍隔膜阀，气动卫生级法兰隔膜阀，气动卫生级三通隔膜阀，气动316L隔膜阀，气动不锈钢隔膜阀，产品设计以达到最低残留,清洗无死角，广泛应用于食品行业,啤酒，乳业，饮料，制药、化妆品等工业领域的不锈钢管路系统。

Pneumatic clamp diaphragm valve, Pneumatic clamp diaphragm valve， It refers to a diaphragm valve composed of a pneumatic actuator and a sanitary clamp diaphragm valve, powered by compressed air, which can switch and adjust the flow rate of fluid medium in the process pipeline. The diaphragm valve has a mirror polished surface and meets food hygiene standards. It adopts clamp quick installation connection, which is easy to install and durable.

The main products of pneumatic sanitary level diaphragm valves include pneumatic sanitary level quick installation diaphragm valves, pneumatic sanitary level clamp diaphragm valves, pneumatic sanitary level flange diaphragm valves, pneumatic sanitary level three-way diaphragm valves, pneumatic 316L diaphragm valves, and pneumatic stainless steel diaphragm valves. The product design is designed to achieve minimum residue, clean without dead corners, and is widely used in stainless steel pipeline systems in industries such as food, beer, dairy, beverages, pharmaceuticals, cosmetics, etc.

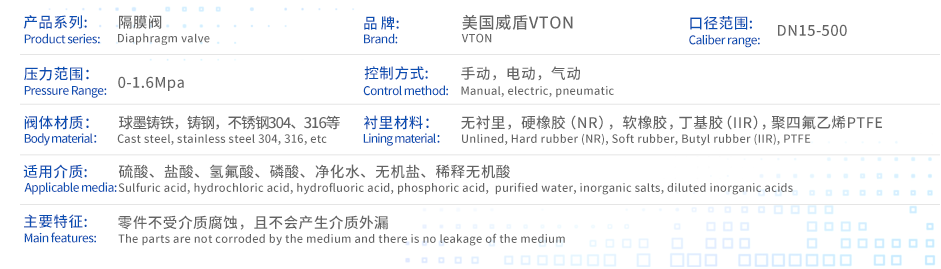

二、进口气动卡箍隔膜阀技术参数

1、气动隔膜阀气缸和阀盖为一体，此阀结构耐腐蚀性更强，阀体内外均可高温消毒
2、驱动方式：气动，常闭（1）/常开（2）/双向（3）
3、使用：气动头D应用于直通阀体，气动头T应用一直通和多通阀体。
4、最大工作压力：10bar（ 隔膜为乙丙橡胶或氟化橡胶）   6bar（隔膜为聚四氟乙烯，单面使用）
5、最大工作温度：150°c（根据使用条件）   3~4bar（控制方式2和3）
7、隔膜材料：乙丙橡胶、氟化橡胶、聚四氟乙烯
8、阀体材质：316L
9、制造标准：GB、DIN、ISO、SMS

三、进口气动卡箍隔膜阀尺寸图
