一、进口卫生级隔膜阀产品概述

进口卫生级隔膜阀，Sanitary diaphragm valve，也叫卫生隔膜阀，食品级隔膜阀，316L隔膜阀，卫生级快装隔膜阀，卫生级卡箍隔膜阀，阀体由美国威盾VTON先进数控机床高精密加工不锈钢304、316、316L制成，阀门镜面抛光，达到卫生级无死角的隔膜阀。外形紧凑美观、流道无死角、装卸快速简便、密封可靠、介质启闭无残渣滞留在阀体内部。被广泛应用于医药、啤酒饮料、乳品、化妆品、生化无菌卫生场合起到快速隔断阀体两端流体的作用。

Sanitary diaphragm valve, Sanitary diaphragm valve， Also known as sanitary diaphragm valve, food grade diaphragm valve, 316L diaphragm valve, sanitary grade quick installation diaphragm valve, sanitary grade clamp diaphragm valve, the valve body is made of high-precision stainless steel 304, 316, and 316L processed by American Weidun VTON advanced CNC machine tool, and the valve mirror polished to achieve sanitary grade diaphragm valve without dead angles. Compact and beautiful in appearance, with no dead corners in the flow channel, fast and easy loading and unloading, reliable sealing, and no residue remaining inside the valve body during medium opening and closing. It is widely used in medicine, beer and beverages, dairy products, cosmetics, and biochemical sterile hygiene occasions to quickly isolate the fluid at both ends of the valve body.

二、进口卫生级隔膜阀产品特征

1、流线型阀体赏心悦目，堰式流道，全开时几乎无流阻。

2、隔膜上部的阀杆、阀瓣等内件与介质完全隔离省去填料密封结构,压紧阀体与阀体间的隔膜可避免阀门启闭时介质外漏。

3、耐酸碱性能好常用于低压卫生级管路。

4、外形紧凑美观、流道无死角、装卸快速简便、密封可靠、介质启闭无残渣滞留在阀体内部。

1. The streamlined valve body is pleasing to the eye, and the weir type flow channel has almost no flow resistance when fully open.

2. The valve stem, valve disc, and other internal components on the upper part of the diaphragm are completely isolated from the medium, eliminating the need for packing and sealing structures. Pressing the diaphragm between the valve body and valve body can prevent medium leakage during valve opening and closing.

3. Good acid and alkali resistance, commonly used in low-pressure sanitary pipelines.

4. Compact and beautiful in appearance, with no dead corners in the flow channel, fast and easy loading and unloading, reliable sealing, and no residue remaining inside the valve body during medium opening and closing.

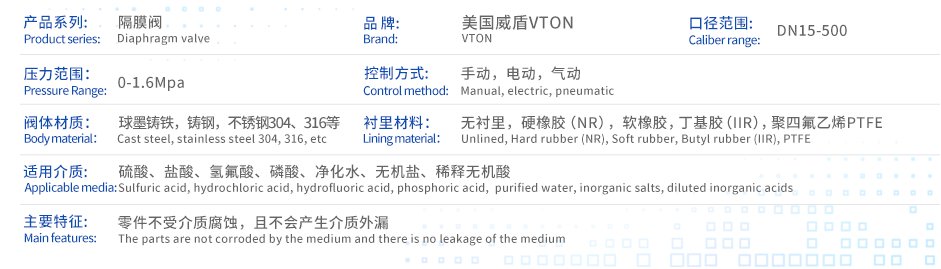

三、进口卫生级隔膜阀技术参数

规格：DN15-50，1″-2″
标准：DIN、ISO

适用温度：-20~180℃

适用压力：0.6-1.6Mpa

阀体材质：SS304、SS316L

隔膜材质：EPDM、FPM 、Silicon、Viton、PTFE

连接方式：卡箍、快装式

操作方式：手动、气动、电动

工艺标准：ISO、DIN、IDF、SMS、3A

四、进口卫生级隔膜阀尺寸图
