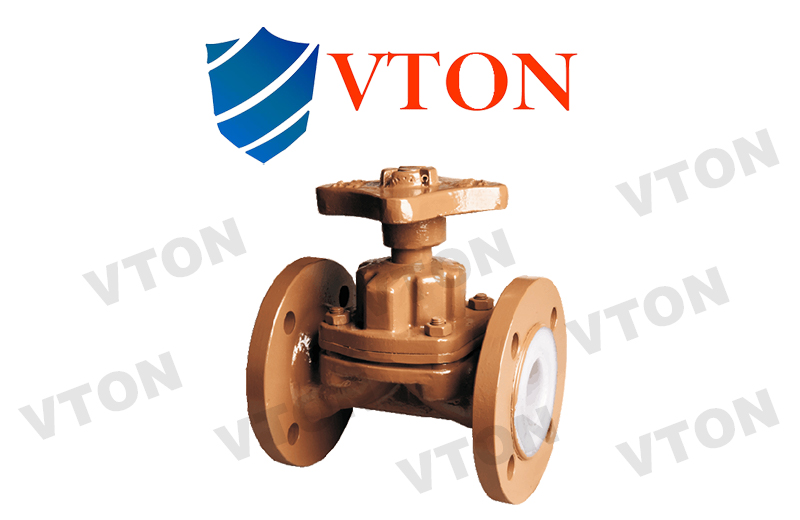

一、进口衬氟隔膜阀产品概述

进口衬氟隔膜阀，Fluorine lined diaphragm valve，也叫衬四氟隔膜阀，全衬隔膜阀，F46隔膜阀，是指阀门内腔覆有可供选择的各种氟塑料, 表面均匀包覆一层FEP，PTFE，具有极高的化学稳定性,专用于控制各种非腐蚀性或强腐蚀性介质的阀门,是一种没有填料函的切断阀。应用在石油、化工、冶金、制药等工业部门的自动化控制系统中,适用于各种浓度的盐酸•硫酸•氢氟酸•王水•硝酸•有机酸•强碱•强氧化剂•浓稀酸交替•酸碱交替等强腐蚀性介质的流通和截断的阀门。

Fluorine lined diaphragm valve, Fluorine lined diaphragm valve， Also known as PTFE lined diaphragm valve, fully lined diaphragm valve, F46 diaphragm valve, it refers to a valve with a variety of fluorine plastics available for selection inside the valve chamber, and a uniformly coated surface layer of FEP and PTFE, which has extremely high chemical stability. It is specifically designed to control various non corrosive or highly corrosive media. It is a shut-off valve without a packing box. The valve is applied in the automation control system of industrial sectors such as petroleum, chemical, metallurgy, and pharmaceuticals, suitable for the flow and cut-off of highly corrosive media such as hydrochloric acid, sulfuric acid, hydrofluoric acid, aqua regia, nitric acid, organic acid, strong base, strong oxidant, alternating concentrated and dilute acid, and acid-base.

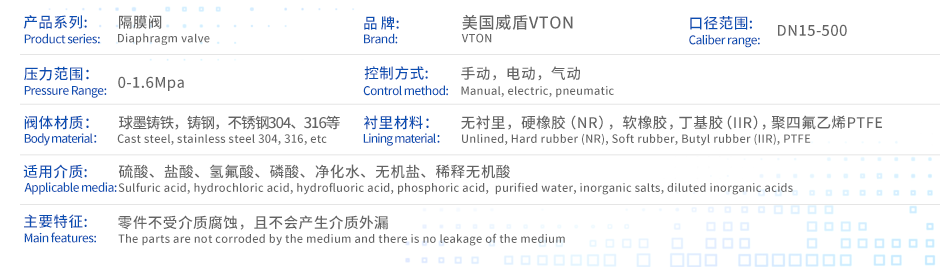

二、进口衬氟隔膜阀技术参数

口径:1/2＂－8＂”;DN15-200

压力:6-10Bar-16Bar

温度:-20～＋150℃

阀体材质:碳钢

衬里材质:氟塑料

阀瓣材质:碳钢

连接方式:法兰

驱动方式:手动、气动、电动

四、进口衬氟隔膜阀主要零部件材料表

五、进口衬氟隔膜阀主要尺寸图
