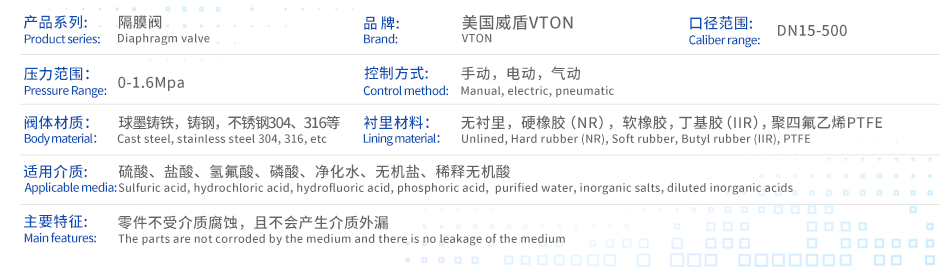

一、进口衬胶隔膜阀产品概述

进口衬胶隔膜阀，Rubber lined diaphragm valve，也叫衬橡胶隔膜阀，衬胶法兰隔膜阀，衬里隔膜阀，全衬隔膜阀，是指启闭件是一块用软质材料制成的隔膜，把阀体内腔与阀盖内腔及驱动部件隔开，使位于隔膜上方的阀杆、阀瓣等零件不受介质腐蚀，省去了填料密封结构，且不会产生介质外漏的阀门。专用于控制非腐蚀性或一般腐蚀性介质，阀体内腔表面无衬里或覆有可供选择的各种橡胶，适用于不同工作温度和流体管路（≤85℃、≤100℃、≤120℃、≤150℃，按照衬里和隔膜材料)

Rubber lined diaphragm valve, Rubber lined diaphragm valve， Also known as rubber lined diaphragm valve, rubber lined flange diaphragm valve, lined diaphragm valve, and fully lined diaphragm valve, it refers to a valve whose opening and closing parts are a diaphragm made of soft material, which separates the valve body cavity from the valve cover cavity and driving components, so that the valve stem, valve disc, and other parts above the diaphragm are not corroded by the medium, eliminating the need for packing sealing structure and preventing medium leakage. Specially designed for controlling non corrosive or general corrosive media, the inner surface of the valve body is unlined or covered with various rubber options, suitable for different working temperatures and fluid pipelines (≤ 85 ℃, ≤ 100 ℃, ≤ 120 ℃, ≤ 150 ℃, according to lining and diaphragm materials)

二、进口衬胶隔膜阀产品特点

1、衬胶隔膜阀弹性密封的开闭件，确保没有内漏；
2、衬胶隔膜阀流线型的流道，使得压力损失小；
3、衬胶隔膜阀没有填料函，因此没有外漏；
4、衬胶隔膜阀阀体与盖被中间隔膜开，使得隔膜上方的阀盖，阀杆等到零件不受介质侵蚀；
5、衬胶隔膜阀隔膜可更换，维护费用纸；
6、衬胶隔膜阀衬里材料的多样性，可适用于各种介质，并具有良好的耐腐蚀性；

1. The opening and closing parts of the rubber lined diaphragm valve with elastic sealing ensure no internal leakage;

2. The streamlined flow channel of the rubber lined diaphragm valve reduces pressure loss;

3. The rubber lined diaphragm valve does not have a packing box, so there is no leakage;

4. The valve body and cover of the rubber lined diaphragm valve are opened by the intermediate diaphragm, so that the valve cover, valve stem, and other parts above the diaphragm are not corroded by the medium;

5. The diaphragm of the rubber lined diaphragm valve can be replaced, and the maintenance cost is paper;

6. The diversity of lining materials for rubber lined diaphragm valves makes them suitable for various media and has good corrosion resistance;

三、进口衬胶隔膜阀主要零件材料

四、进口衬胶隔膜阀主要性能规范

五、进口衬胶隔膜阀尺寸图
