一、大扭矩进口拨叉式气动执行器概述

大扭矩进口拨叉式气动执行器具有灵活的模块化组合设计，气动模块、液压模块、手动模块可根据现场情况任意选择、更替。分单作用、双作用两种作用形式，适用于蝶阀、球阀、旋塞阀等做90°角行程的阀门控制。

拨叉式气动执行器（英文：Scotch Yoke Pneumatic Actuator），是一种角行程活塞式气动执行机构，拨叉式气动执行器设计精巧紧凑，牢固耐用，是专门用于球阀、蝶阀、旋塞阀等适用90°转角的阀门的开关切断或调节控制。气动执行器分双作用和单作用，双作用气动执行器和单作用气动执行器其实在使用起来是差不多的，最根本的区别在于内部结构，单作用执行器多了弹簧这个零部件，所以其最大的优势在于断电后可以复位！

单作用的成本比双作用要高，单作用气动执行器(气动执行器内部有弹簧，在断开气源情况下，弹簧会自动复位，提供力量使球阀恢复到起始的开启或关闭状态)，若选择双作用执行器，在断开气源情况下，执行器失去动力，阀位保持在失气一瞬间处于的那个位置。如果需要在失气情况，阀门自动复位，就选单作用执行器，如果不需要，就选双作用执行器。

The high torque imported fork type pneumatic actuator has a flexible modular combination design, and the pneumatic module, hydraulic module, and manual module can be selected and replaced according to the on-site situation. There are two types of action: single action and double action, suitable for controlling valves with a 90 ° angle stroke, such as butterfly valves, ball valves, and plug valves.

The Scotch Yoke Pneumatic actuator is an angle stroke piston type pneumatic actuator. The design of the Scotch Yoke pneumatic actuator is exquisite, compact, sturdy, and durable. It is specifically used for the on-off or adjustment control of valves such as ball valves, butterfly valves, and plug valves that are suitable for 90 ° angle. Pneumatic actuators are divided into double acting and single acting. Double acting pneumatic actuators and single acting pneumatic actuators are actually similar in use, with the most fundamental difference being their internal structure. Single acting actuators have an additional spring component, so their biggest advantage is that they can be reset after power failure!

The cost of a single acting pneumatic actuator is higher than that of a double acting one. A single acting pneumatic actuator (which has a spring inside and automatically resets when the air source is disconnected, providing force to restore the ball valve to its initial open or closed state). If a double acting actuator is selected, the actuator loses power when the air source is disconnected and the valve position remains at the moment of loss of air. If it is necessary to automatically reset the valve in case of loss of air, choose a single acting actuator. If not required, choose a double acting actuator.

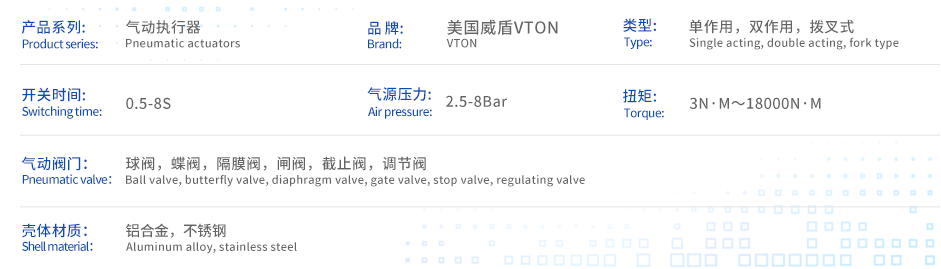

二、大扭矩进口拨叉式气动执行器技术参数

三、大扭矩进口拨叉式气动执行器技术特点

1、DRG 系列重型执行器，通用于一般以90度旋转的阀门。例如：球阀，蝶阀，旋转阀等开关或调节流量的功能；

2、DRG 01系列执行器是对称设计。在0度与90度时输出扭矩最大。中间位置输出扭矩最小。正对应于球阀类产生的扭矩特性；

3、DRG 02系列执行器是采用倾斜设计，可以输出更大的起始扭矩。更符合蝶阀类的扭矩特性；

4、缸体内壁采用镀硬铬工艺，保证更长的实用寿命；

5、轨道高频淬火研磨处理，滑块采用方形自润滑工艺，能保证永久的实用性；

6、DRG系列执行器拥有一整套安装配件包括：手动手轮，液压手动，限位开关，电磁阀，定位器及其他控制部件；

7、模块化设计和结构在安装、维修和储存方面提供最大化便利。

1. The DRG series heavy-duty actuator is suitable for valves that typically rotate at 90 degrees. For example, functions such as ball valves, butterfly valves, rotary valves, etc. for switching or regulating flow;

2. The DRG 01 series actuators are designed symmetrically. The maximum output torque is achieved at 0 and 90 degrees. The middle position has the minimum output torque. Corresponding to the torque characteristics generated by ball valves;

3. The DRG 02 series actuators adopt a tilted design, which can output a larger initial torque. More in line with the torque characteristics of butterfly valves;

4. The inner wall of the cylinder body adopts a hard chrome plating process to ensure a longer practical life;

5. High frequency quenching and grinding treatment of the track, the slider adopts square self-lubricating technology, which can ensure permanent practicality;

6. The DRG series actuators have a complete set of installation accessories, including: manual handwheel, hydraulic manual, limit switch, solenoid valve, locator, and other control components;

7. Modular design and structure provide maximum convenience in installation, maintenance, and storage.
