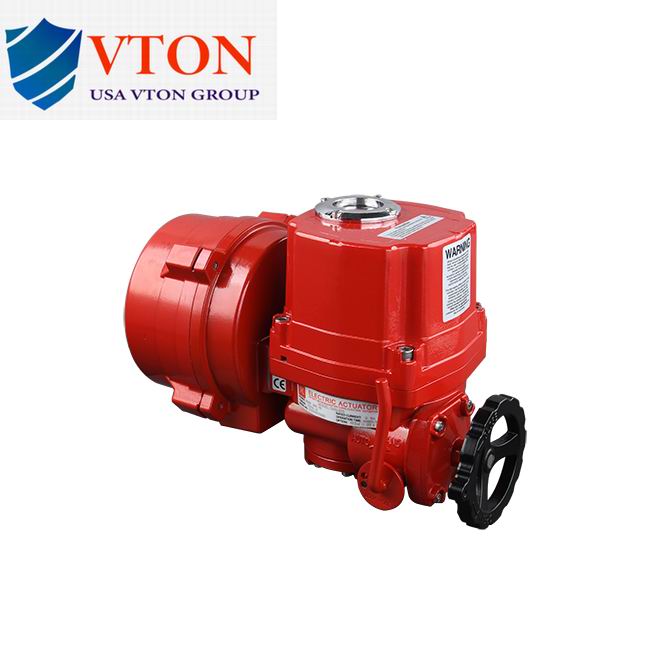

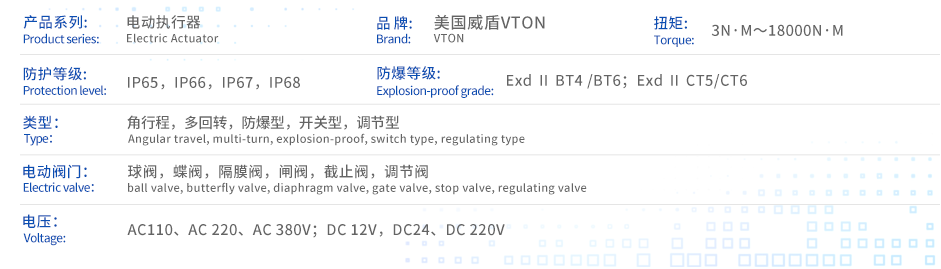

一、进口电动装置概述

进口电动装置是威盾VTON公司生产的隔爆型电气设备（d），防爆等级Exd ⅡCT5 Gb，因其较高的防爆功能，常被用于十分恶劣、很多易燃易爆气体混合物较多的工作环境中。

V-OHQ开关型属于基本的防爆执行机构，用于把阀门驱动至全开或全关的位置。0°~90°旋转为常用标准行程，亦可根据客户需求定制。防护等级IP67，可选IP68。输出扭矩2000N·M。

机械离合机构，手动/电动切换；过热保护、过载保护、双重限位

V-OHQ系列防爆电动执行器用于控制阀门和其他类似产品的0。-270。旋转,如蝶阀，球阀，阻尼器，挡板阀，旋塞阀，百叶窗阀等。广泛应用于石油，化工，水处理，船舶, 造纸，电厂，供暖，轻工等行业。可由380V /220V / 110V交流电源或24V / 110V直流电源驱动，输入4-20mA电流信号或0-10V直流电压信号作为控制信号。将阀门移 动到正确的位置,实现自动控制,其最大输出扭矩为2000N-M.( CE认证和防爆证书)。

The electric device is an explosion-proof electrical equipment (d) produced by Weidun VTON company, with an explosion-proof grade of Exd Ⅱ CT5 Gb. Due to its high explosion-proof function, it is often used in extremely harsh working environments with many flammable and explosive gas mixtures.

The V-OHQ switch type is a basic explosion-proof actuator used to drive the valve to the fully open or fully closed position. 0 °~90 ° rotation is a commonly used standard stroke, which can also be customized according to customer needs. Protection level IP67, optional IP68. Output torque 2000N · M.

Mechanical clutch mechanism, manual/electric switching; Overheat protection, overload protection, double limit

The V-OHQ series explosion-proof electric actuator is used to control valves and other similar products- 270. Rotating, such as butterfly valves, ball valves, dampers, baffle valves, plug valves, louver valves, etc. Widely used in industries such as petroleum, chemical, water treatment, shipbuilding, papermaking, power plants, heating, and light industry. It can be driven by a 380V/220V/110V AC power supply or a 24V/110V DC power supply, with a 4-20mA current signal or a 0-10V DC voltage signal as the control signal. Move the valve to the correct position for automatic control, with a maximum output torque of 2000N-M. (CE certification and explosion-proof certificate).

二、进口电动装置性能特点

1、壳体—指该盖由硬质铝合金制成，具有阳极氧化处理和聚酯粉末涂层。高耐腐蚀，防水等级为IP67。IP68和防爆型是可选的。

2、电机—全封闭式鼠笼式电机，体积小,扭矩大，惯性力小,F级绝缘等级。内部热保护开关避免损坏电机。

3、手动手轮—手轮设计安全可靠,省力省力。当执行器未通电时，将离合器拉到正确的位置后，可以用手轮操作。一旦通电，离合器将自动返回。

4、位置指示器—安装在中心轴上,用于观察阀门的位置。为了避免沉积和观察方便，它是由凸透镜设计的。

5、加热器和恒温器—用于控制执行器内的温度，以避免内部潮湿

6、限位开关—两机械和电子双限位。机械限位螺丝可调，安全可靠。电子限位开关是由凸轮控制的SPDT。限位开关的位置可以通过简单的调整精确方便地设定。

7、扭矩开关—提供过载保护(V-OHQ 005/008/010除外),并且当阀门堵塞时，通过自动切断电源来避免阀门和执行器的损坏。(工厂设置，无需用户修改)

8、自锁—精密蜗轮蜗杆传动大扭矩，噪音低(最高50dB ),使用寿命长。自锁功能可防止反转,确保稳定性和可靠性。高效润滑油在出厂前已经添加，不再需要添加。

9、防脱螺栓—拆下盖子时，螺栓将附着在盖板上。所有外部螺栓均采用不锈钢制成。

10、安装—电动执行器底部的安装尺寸符合国际标准ISO5211和DIN3337。孑L成四方形，易于通过线性或45。安装。执行器可以垂直或水平安装。

11、线路—电路控制电路符合单相或三相电源标准，布局合理紧凑。端子有效满足各种附加功能要求。

12、智能模块—采用高度集成,低功耗的MCU和模拟电路控制板。由于全金属外部安装，电机热源和控制板有效分离，大大提高了软，硬件的抗干扰和耐热性。

13、阀位数字显示—执行器打开和关闭期间，液晶显示屏上显示阀门位置的变化。

14、相序自动化调整—智能执行器自动连接到三相电源相序。

1. Shell - refers to the cover made of hard aluminum alloy, with anodizing treatment and polyester powder coating. High corrosion resistance, waterproof grade IP67. IP68 and explosion-proof types are optional.

2. Motor - Fully enclosed squirrel cage motor, small size, high torque, low inertia force, F-class insulation level. Internal thermal protection switch to avoid damaging the motor.

3. Manual handwheel - The handwheel design is safe, reliable, and labor-saving. When the actuator is not powered on, pull the clutch to the correct position and operate it with a handwheel. Once energized, the clutch will automatically return.

4. Position indicator - installed on the central axis to observe the position of the valve. To avoid sedimentation and facilitate observation, it is designed with convex lenses.

5. Heater and thermostat - used to control the temperature inside the actuator to avoid internal moisture

6. Limit switch - two mechanical and electronic dual limit switches. The mechanical limit screw is adjustable, safe and reliable. The electronic limit switch is an SPDT controlled by a cam. The position of the limit switch can be precisely and conveniently set through simple adjustments.

7. Torque switch - provides overload protection (except for V-OHQ 005/008/010) and automatically cuts off power to avoid damage to the valve and actuator when the valve is blocked. (Factory settings, no user modification required)

8. Self locking - precision worm gear transmission with high torque, low noise (up to 50dB), and long service life. The self-locking function can prevent reversal, ensuring stability and reliability. Efficient lubricating oil has been added before leaving the factory and no longer needs to be added.

9. Anti detachment bolt - When removing the cover, the bolt will attach to the cover plate. All external bolts are made of stainless steel.

10. Installation - The installation dimensions at the bottom of the electric actuator comply with international standards ISO5211 and DIN3337. L forms a square shape, making it easy to pass through linear or 45. Installation. The actuator can be installed vertically or horizontally.

11. The circuit control circuit complies with single-phase or three-phase power supply standards, with a reasonable and compact layout. The terminals effectively meet various additional functional requirements.

12. Intelligent module - using highly integrated, low-power MCU and analog circuit control board. Due to the all metal external installation, the motor heat source and control board are effectively separated, greatly improving the anti-interference and heat resistance of software and hardware.

13. Valve position digital display - During the opening and closing of the actuator, the LCD screen displays the change in valve position.

14. Automatic adjustment of phase sequence - the intelligent actuator automatically connects to the phase sequence of the three-phase power supply.
