一、蝶阀用调节型电动执行器产品概述

美国威盾VTON的进口电动执行器作为工业自动化控制系统中的重要执行机构，可远距离集中控制能满足计算机程控的需要；如今在石油化工、燃气设备、核工业、电力装备、环保水处理、暖通空调、钢 铁冶金、工业窑炉、罐装设备、酿酒设备、干燥设备、真空设备、表面处理、生物制药、食品机械、纺织印染、造纸等行业中得到广泛的使用，也是国防建设、科技 建设的首选产品。

VTON01型电动执行器用于控制0°～270°旋转的阀门及其他同类产品，如蝶阀、球阀、风门、挡板阀、旋塞阀、百叶阀等，可以广泛应用于石油、化工、水处理、船舶、造纸、电站、供热，轻工等各行业中。它以380V/220V/110V交流电源为驱动电源，以4-20mA电流信号或0-10V DC 电压信号为控制信号，可使阀门运动到所需位置，实现其自动化控制，最大输出扭距达4000N·m。

VTON's imported electric actuators, as important actuators in industrial automation control systems, can be centrally controlled over long distances and meet the needs of computer programming; Nowadays, it is widely used in industries such as petrochemicals, gas equipment, nuclear industry, power equipment, environmental water treatment, HVAC, steel metallurgy, industrial kilns, canning equipment, brewing equipment, drying equipment, vacuum equipment, surface treatment, biopharmaceuticals, food machinery, textile printing and dyeing, papermaking, etc. It is also the preferred product for national defense and technological construction.

The VTON01 electric actuator is used to control valves and other similar products that rotate from 0 ° to 270 °, such as butterfly valves, ball valves, dampers, baffle valves, plug valves, louver valves, etc. It can be widely used in various industries such as petroleum, chemical, water treatment, shipbuilding, papermaking, power plants, heating, and light industry. It uses a 380V/220V/110V AC power supply as the driving power, and a 4-20mA current signal or a 0-10V DC voltage signal as the control signal to move the valve to the desired position, achieving automatic control. The maximum output torque reaches 4000N · m.

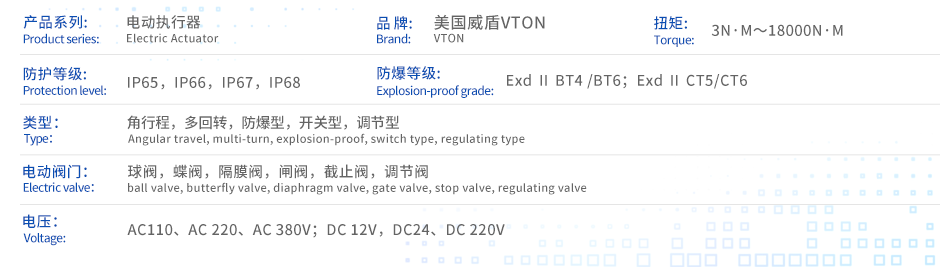

二、蝶阀用调节型电动执行器性能参数

三、蝶阀用调节型电动执行器设计

1、壳体 壳体为硬质铝合金，经阳极氧化处理和聚酯粉末涂层，耐腐蚀性强，防护等级为IP67，NEMA4和6，并有IP68型供选择。

2、电机 全封闭式鼠笼式电机，体积小，扭距大，惯性力小，绝缘等级为F级，内置热保护开关，可防止损坏电机。

3、手动结构 手柄的设计保证安全可靠、省力、体积小。不通电时，扳动手柄可进行手动操作。不用手动时，将板手置于板手夹内，方便使用。

4、指示器 指示器安装在中心轴上，可以观察阀门位置。透镜采用凸出镜设计，不积水，观察更方便。

5、干燥器 用来控制温度，防止由于温度和天气变化导致执行器内部水分凝结，保持内部电气元件的干燥。

6、密封 密封性好，标准产品防护等级是IP67，并可选IP68防护等级。

7、限位开关 机械，电子双重限位。机械限位螺钉可调，安全可靠；电子限位开关由凸轮机构来控制，简单的调整机构能精确并方便地设定位置，且不受手轮过量的影响。

8、自锁 精密的蜗轮蜗杆机构可高效传输大扭距，效率高，噪音低（最大50分贝），寿命长；有自锁功能，防止反转，传动部分稳定可靠，无需再加油。

9、防脱螺栓 拆除外壳时，螺栓附在壳体上，不会脱落。

10、安装 底部安装尺寸符合ISO5211/ DIN3337国际标准，孔成双四方形便于带方杆的阀线性或45°转角安装，适应性强。可以垂直安装，也可以水平安装。

11、线路 控制线路符合单相或三相电源标准，线路布置紧凑合理，接线端子可有效满足各种附加功能的要求。

1. The shell is made of hard aluminum alloy, which has undergone anodizing treatment and polyester powder coating. It has strong corrosion resistance and protection levels of IP67, NEMA4, and 6, with IP68 type available for selection.

2. The fully enclosed squirrel cage motor has a small volume, large torque, low inertia force, and an insulation level of F grade. It is equipped with a built-in thermal protection switch to prevent damage to the motor.

3. The design of the manual structural handle ensures safety, reliability, labor-saving, and small size. When not powered on, manual operation can be performed by pulling the handle. When not in use manually, place the wrench inside the wrench clamp for easy use.

4. The indicator is installed on the central axis to observe the position of the valve. The lens adopts a convex mirror design, which does not accumulate water and is more convenient to observe.

5. A dryer is used to control temperature, prevent moisture condensation inside the actuator due to temperature and weather changes, and maintain the dryness of internal electrical components.

6. Good sealing performance, standard product protection level is IP67, and IP68 protection level is optional.

7. Limit switch mechanical, electronic dual limit. The mechanical limit screw is adjustable, safe and reliable; The electronic limit switch is controlled by a cam mechanism, and a simple adjustment mechanism can accurately and conveniently set the position without being affected by excessive handwheels.

8. The self-locking precision worm gear mechanism can efficiently transmit large torque, with high efficiency, low noise (up to 50 decibels), and long service life; It has a self-locking function to prevent reverse rotation, and the transmission part is stable and reliable without the need for further refueling.

9. When removing the casing with anti detachment bolts, the bolts are attached to the casing and will not fall off.

10. The installation size at the bottom meets the international standards of ISO5211/DIN3337, and the holes are double square, making it easy for linear or 45 ° angle installation of valves with square rods, with strong adaptability. It can be installed vertically or horizontally.

11. The circuit control circuit complies with single-phase or three-phase power supply standards, the circuit layout is compact and reasonable, and the wiring terminals can effectively meet the requirements of various additional functions.

四、蝶阀用调节型电动执行器选型

美国威盾VTON的授权经销商都是经过各种实力评估的企业，从事阀门事业至少要10年以上的行业经验，他们的产品在质保期内24小时响应，免费三包，质保期外也可以提供有偿服务，只收取材料和人工成本费。

进口电动蝶阀通常由角行程电动执行机构(0～90°部分回转)和蝶阀整体通过机械连接，经过安装调试后共同组成。电动蝶阀主要有电动蝶阀,电动调节蝶阀,电动防爆蝶阀,电动通风蝶阀等系列。电动蝶阀,电动调节蝶阀,电动防爆蝶阀,电动通风蝶阀是直接接通电源(AC220V或其他电源等级的电源)通过开关正、反导向来完成开关动作。电动调节蝶阀是以AC220V电源作为动力，接收工业自动化控制系统预设的参数值4～20mA(0～5等弱电控制)信号来完成调节动作。

VTON's authorized dealers are enterprises that have undergone various strength evaluations and have at least 10 years of industry experience in the valve industry. Their products respond 24 hours within the warranty period, with free three guarantees. They can also provide paid services outside the warranty period, only charging material and labor costs.

Imported electric butterfly valves are usually composed of an angle stroke electric actuator (0-90 ° partial rotation) and the butterfly valve as a whole, which are mechanically connected and installed and debugged together. Electric butterfly valves mainly include electric butterfly valves, electric regulating butterfly valves, electric explosion-proof butterfly valves, electric ventilation butterfly valves and other series. Electric butterfly valves, electric regulating butterfly valves, electric explosion-proof butterfly valves, and electric ventilation butterfly valves are directly connected to the power supply (AC220V or other power supply levels) to complete the switching action through the forward and reverse direction of the switch. The electric regulating butterfly valve is powered by an AC220V power supply and receives a parameter value of 4-20mA (0-5 weak current control) signal preset by the industrial automation control system to complete the regulating action.
