一、进口不锈钢对夹式止回阀概述

进口不锈钢对夹止回阀是美国威盾VTON全部材料采用新型耐腐蚀不锈钢（304、316、316L），采用对夹式连接方式的止回阀。可在任何位置的管路上安装，防止介质逆流，其连接方式是利用原有管道两端法兰对夹即可投入运行，其各项指标都优于目前市售的任何一种上回阀。运用范围广泛，凡水、气、油、酸、碱液、氢、氨、特别消防管道等介质均可使用。

The stainless steel clamp check valve is a check valve made of new corrosion-resistant stainless steel (304, 316, 316L) and connected in a clamp style, all of which are used by Weidun VTON in the United States. It can be installed on any position of the pipeline to prevent reverse flow of the medium. Its connection method is to use the flanges at both ends of the original pipeline to clamp and put into operation, and its various indicators are superior to any currently available upper check valve. Widely applicable, it can be used in media such as water, gas, oil, acid, alkali, hydrogen, ammonia, and special fire pipelines.

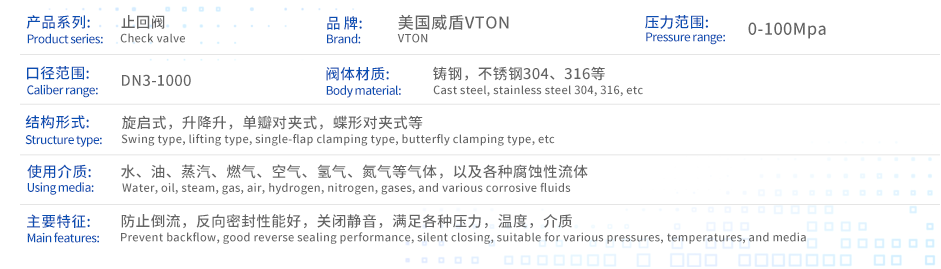

二、进口不锈钢对夹式止回阀参数

三、进口不锈钢对夹式止回阀产品特点

1、结构长度短，其结构长度只有传统法兰止回阀的1/4～1/8；

2、体积小、重量轻，其重量只有传统法兰止回阀的1/4～1/20；

3、对夹式止回阀阀瓣关闭快速，水锤压力小；

4、水平管道或垂直管道均可使用，机构长度短，体积小，重量轻，安装方便；

5、对夹止回阀流道通畅、流体阻力小；

6、对夹式止回阀动作灵敏、密封性能好；

7、阀瓣行程短、关阀冲击力小；

8、整体结构、简单紧凑、造型美观；

9、使用寿命长、可靠性高。

1. The structural length is short, which is only 1/4 to 1/8 of that of traditional flange check valves;

2. Small in size and light in weight, its weight is only 1/4 to 1/20 of that of traditional flange check valves;

3. The clamp type check valve disc closes quickly and the water hammer pressure is low;

4. Both horizontal and vertical pipelines can be used, with short length, small volume, light weight, and convenient installation;

5. The flow path of the clamp check valve is unobstructed and the fluid resistance is small;

6. The clamp type check valve is sensitive to action and has good sealing performance;

7. Short valve disc stroke and low closing impact force;

8. Overall structure, simple and compact, beautiful appearance;

9. Long service life and high reliability.

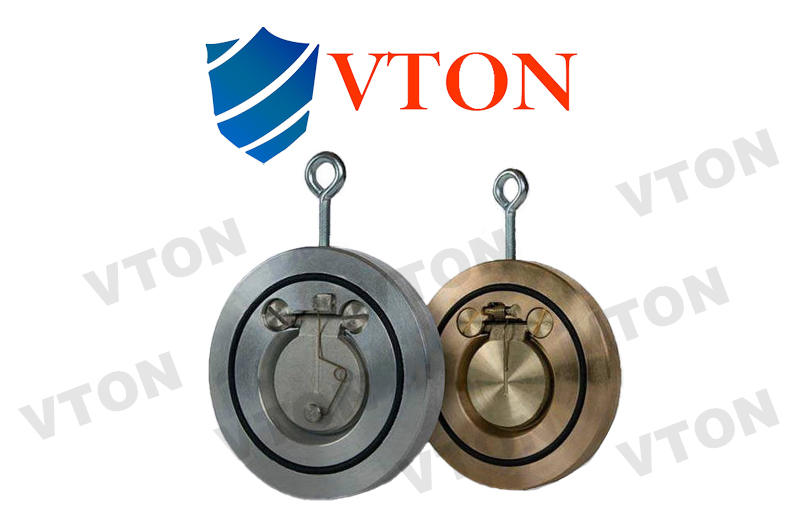

四、进口不锈钢对夹式止回阀外形图
