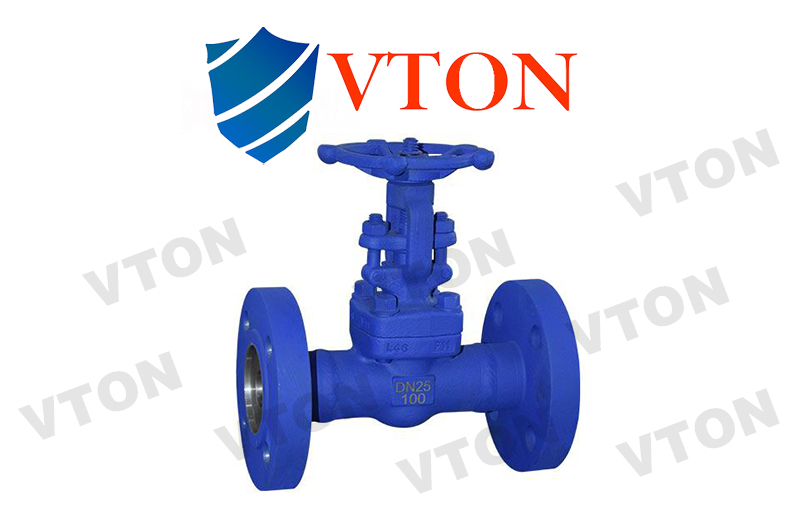

一、进口锻钢A105闸阀产品概述

进口锻钢A105闸阀，Forged steel A105 gate valve，也叫整体锻造闸阀，是指阀体以及各阀门部件均采用锻件A105材料加工而成的闸阀，锻件材料有A105、F11、F5、304、304L、闸阀316、316L等。最大特点是小口径，高压力；小口径，口径范围：DN10~DN50；高压力：国标PN16~PN320、美标：Class150 ～2500

锻钢A105闸阀适用于适用于水、蒸汽、油品、硝酸、醋酸、氧化性介质、尿素以及石油管道上。美国威盾VTON锻钢A105闸阀采用缩径设计，与同口径的铸钢闸阀相比流量要稍小，但承受的压力与温度范围要比铸钢阀门要高，密封性能也要比铸钢闸阀要好许多，寿命更长，介质流动方向同其他闸阀一样不受限制。

Forged steel A105 gate valve, also known as integral forged gate valve, refers to a gate valve in which the valve body and various valve components are processed using forged A105 material. The forged materials include A105, F11, F5, 304, 304L, gate valve 316, 316L, etc. The biggest feature is small caliber and high pressure; Small caliber, caliber range: DN10~DN50; High pressure: National standard PN16~PN320, American standard Class150~2500

Forged steel A105 gate valve is suitable for use in water, steam, oil, nitric acid, acetic acid, oxidizing media, urea, and petroleum pipelines. The American Weidun VTON forged steel A105 gate valve adopts a reduced diameter design. Compared with cast steel gate valves of the same diameter, the flow rate is slightly smaller, but the pressure and temperature range it can withstand is higher than that of cast steel valves. The sealing performance is also much better than that of cast steel gate valves, and the service life is longer. The direction of medium flow is not restricted like other gate valves.

二、进口锻钢A105闸阀参数

口径:DN15~50

适用温度:-200~650℃

压力:PN10-32Mpa，ANSI 150~4500LB

连接方式:法兰，螺纹，承插焊，对焊

阀体材质:A105、LF2、F316

阀板材质:A105、F316

阀杆材质:F6,F316

阀座材质:Satellite

三、进口锻钢A105闸阀特点

1、锻钢A105闸阀结构紧凑,非常坚固,适用于高压高温应用领域

2、锻钢A105闸阀实心钨铬钴合金6楔板,确保较低的磨损和较长的使用寿命

3、锻钢A105闸阀填料环经过4000psi高压预压缩,具有完整的密封性能

4、全导向楔板减少阀座表面的磨损

5、锻造结构，耐高压高温

6、各种材质可供选择

7、多种连接方式:法兰、插焊、螺纹

1. The forged steel A105 gate valve has a compact structure and is very sturdy, suitable for high-pressure and high-temperature applications

2. Forged steel A105 gate valve solid tungsten chromium cobalt alloy 6 wedge plate, ensuring low wear and longer service life

3. The forged steel A105 gate valve packing ring has undergone 4000psi high-pressure pre compression and has complete sealing performance

4. Fully guided wedge plate reduces wear on valve seat surface

5. Forged structure, resistant to high pressure and high temperature

6. Various materials available for selection

7. Multiple connection methods: flange, plug welding, thread
