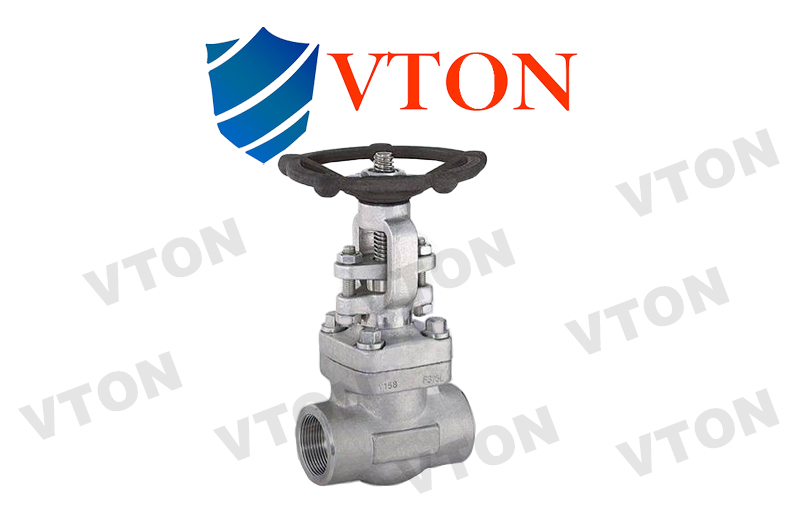

一、进口不锈钢高压截止阀概述

进口不锈钢高压截止阀，Stainless steel high-pressure globe valve，是指采用不锈钢材质锻造的，能耐高高压力的截止阀，压力范围为PN16-PN500或者150LB-2500LB。

Stainless steel high pressure globe valve refers to a globe valve forged from stainless steel material that can withstand high and high pressures, with a pressure range of PN16-PN500 or 150LB-2500LB.

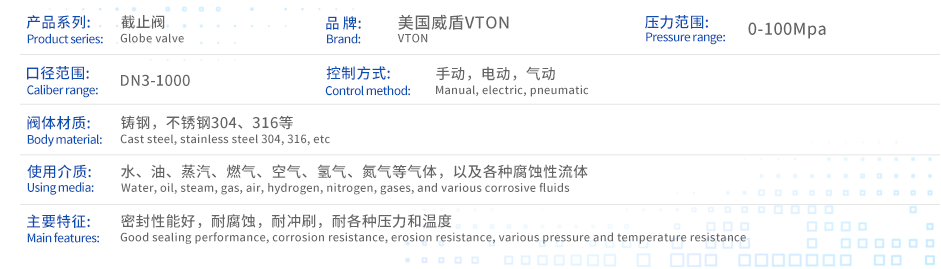

二、进口不锈钢高压截止阀主要设计参数:
口径范围:DN15≈DN300。
压力范围:PN16-PN500
温度范围:－20℃≈550℃
传动方式:手动、电动。
阀体材质:铸钢、不锈钢、铬钼钢。
连接方式:焊接、法兰、内螺纹。

三、进口不锈钢高压截止阀主要特点

1.阀门与管路连接采用焊接式结构。
2.密封面不易磨损、擦伤，密封性能好，寿命长。
3.结构紧凑，启闭性好、高度小、维护方便。
4.适用于水、蒸汽、油品管路上，具有耐高温、耐高压的特点。

1. The connection between the valve and the pipeline adopts a welded structure.

2. The sealing surface is not easily worn or scratched, with good sealing performance and long service life.

3. Compact structure, good opening and closing performance, small height, and convenient maintenance.

4. Suitable for water, steam, and oil pipelines, with the characteristics of high temperature and high pressure resistance.

四、进口不锈钢高压截止阀选型

1、高温、高压介质的管路或装置上宜选用截止阀。如火电厂、核电站，石油化工系统的高温、高压管路上。
2、管路上对流阻要求不严的管路上。即对压力损失考虑不大的地方。
3、小型阀门可选用针阀、仪表阀、取样阀、压力计阀等。
4、有流量调节或压力调节，但对调节精度要求不高，而且管路直径又比较小，如公称通经≤50mm的管路上，宜选用。
5、合成工业生产中的小化肥和大化肥宜选用公称压力PN160 公称压力16MPa 或PN320 公称压力32MPa 的高压角式截止阀或高压角式节流阀。
6、氧化铝拜耳法生产中的脱硅车间、易结焦的管路上，易选用阀体分开式、阀座可去处的、硬质合金密封副的直流式截止阀或直流式节流阀。
7、城市建设中的供水、供热工程上，公称通经较小的管路，可选用截止、平衡阀或柱塞阀，如公称通经小于150mm的管路上。

1. Globe valves should be selected on pipelines or devices with high temperature and high pressure media. Such as thermal power plants, nuclear power plants, and high-temperature and high-pressure pipelines in petrochemical systems.

2. On pipelines with less strict requirements for flow resistance. That is, places where pressure loss is not considered much.

3. Small valves can choose needle valves, instrument valves, sampling valves, pressure gauge valves, etc.

4. There is flow regulation or pressure regulation, but there is not a high requirement for regulation accuracy, and the pipeline diameter is relatively small. For example, on pipelines with a nominal diameter of ≤ 50mm, it is recommended to choose.

5. Small and large fertilizers in synthetic industrial production should use high-pressure angle globe valves or high-pressure angle throttle valves with a nominal pressure of PN160 and a nominal pressure of 16MPa or PN320 and a nominal pressure of 32MPa.

6. In the production of alumina by Bayer process, in the desilication workshop and on pipelines prone to coking, it is easy to choose DC globe valves or DC throttle valves with separate valve bodies, removable valve seats, and hard alloy sealing pairs.

7. In the water supply and heating engineering of urban construction, for pipelines with smaller nominal diameter, cut-off, balance valves or plunger valves can be selected, such as on pipelines with a nominal diameter less than 150mm.
