一、进口不锈钢截止阀概述

进口不锈钢截止阀，Stainless steel globe valve，也叫304截止阀，316截止阀，不锈钢材质截止阀，耐酸碱截止阀，是指阀体采用威盾优质不锈钢铸造的截止阀，不锈钢耐酸碱，耐腐蚀，韧性好，抗压强，哪里高温，除了适用于一般的水，蒸汽，气体外，还适用于硫酸，磷酸，硝酸等酸碱性介质。

阀杆开启或关闭行程相对较短，并具有非常可靠的切断动作，使得这种阀门非常适合作为介质的切断或调节及节流使用。截止阀一旦处于开启状态，它的阀座和阀瓣密封面之间就不再有接触，因而它的密封面机械磨损较小，由于大部分截止阀的阀座和阀瓣比较容易修理或更换密封元件时无需把整个阀门从管线上拆下来，这对于阀门和管线焊接成一体的场合是很适用的。介质通过此类阀门时的流动方向发生了变化，因此截止阀的流动阻力较高于其它阀门。

Stainless steel globe valve, also known as 304 globe valve, 316 globe valve, stainless steel globe valve, acid and alkali resistant globe valve, refers to a globe valve with a valve body made of Weidun high-quality stainless steel casting. Stainless steel is acid and alkali resistant, corrosion-resistant, has good toughness, and has strong pressure resistance. It is suitable for high temperatures, not only for general water, steam, gas, but also for acidic and alkaline media such as sulfuric acid, phosphoric acid, nitric acid, etc.

The valve stem has a relatively short opening or closing stroke and a very reliable cutting action, making it very suitable for cutting, adjusting, and throttling the medium. Once the globe valve is in the open state, there is no longer contact between its seat and the sealing surface of the valve disc, so its sealing surface has less mechanical wear. As the seat and valve disc of most globe valves are relatively easy to repair or replace sealing components, the entire valve does not need to be removed from the pipeline. This is very suitable for situations where the valve and pipeline are welded together. When the medium passes through this type of valve, the flow direction changes, so the flow resistance of the shut-off valve is higher than that of other valves.

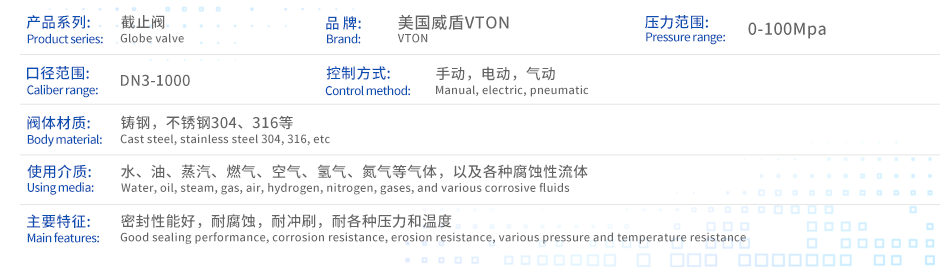

二、进口不锈钢截止阀技术参数

接口尺寸:DN10－ DN1000；

压力等级:PN10－ PN320 /150LB － 1500LB；

温度范围:－196℃ －＋500℃；

连接方式:法兰式、对焊、承插焊、螺纹式；

进口不锈钢截止阀使用介质：水、油品、气体、蒸汽、燃气，硫酸，磷酸，硝酸，海水等。

进口不锈钢截止阀应用石油、化工、液化气、给排水、食品、制药、发电、造纸、城建、矿产、锅炉蒸汽系统、市政各部门等。

三、进口不锈钢截止阀产品特点

1、进口不锈钢截止阀结构简单，制造和维修比较方便。

2、进口不锈钢截止阀工作行程小，启闭时间短。

3、进口不锈钢截止阀密封性好，密封面间磨擦力小，寿命较长。

1. Stainless steel globe valves have a simple structure and are easy to manufacture and maintain.

2. Stainless steel globe valves have a small working stroke and short opening and closing time.

3. Stainless steel globe valves have good sealing performance, low friction between sealing surfaces, and long service life.

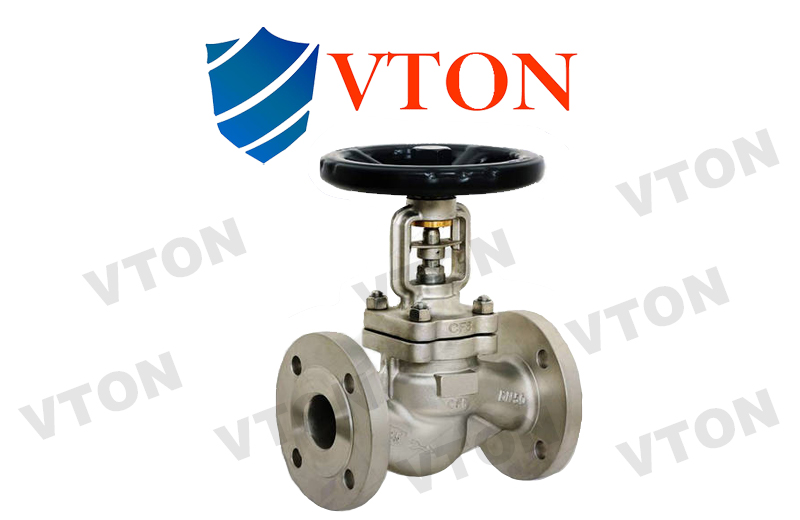

四、进口不锈钢截止阀主要外形图
