一、进口波纹管截止阀

进口波纹管截止阀，BELLOWS GLOBE VALVE，也叫波纹管密封截止阀，是指采用双重的密封设计（波纹管+填料）结构设计，密封性好，特别适用于蒸汽、导热油、剧毒、强腐气液介质密封可靠性要求特别高的工况。

进口波纹管截止阀采用威盾独创的金属波纹管密封技术制造，高性能的弹性金属波纹管，伸缩疲劳寿命特别长。采用波纹管密封的设计，完全消除了普通阀门阀杆填料密封老化快易泄露的缺点，不但提高波纹管密封截止阀使用能源效率，增加生产设备安全性，减少了维修费用及频繁的维修保养，还提供了清洁安全的工作环境。

Bellows Globe Valve, also known as Bellows Seal Globe Valve, refers to a double sealing design (bellows+packing) with good sealing performance, especially suitable for working conditions with high sealing reliability requirements for steam, heat transfer oil, highly toxic and corrosive gas-liquid media.

The corrugated pipe globe valve is manufactured using Weidun's unique metal corrugated pipe sealing technology. The high-performance elastic metal corrugated pipe has a particularly long expansion fatigue life. The design of using bellows sealing completely eliminates the disadvantage of fast aging and easy leakage of ordinary valve stem packing seals. It not only improves the energy efficiency of bellows sealing globe valves, increases the safety of production equipment, reduces maintenance costs and frequent maintenance, but also provides a clean and safe working environment.

二、进口波纹管截止阀产品特点

1、波纹管密封截止阀，其关键部件金属波纹管，下端与阀杆组件采用自动滚焊焊接，上端与连接板自动滚焊接，在流体介质和大气之间形成一个金属屏障，确保阀杆零泄漏；
2、阀瓣采用锥形设计，密封面与介质成流线形，密封性能更好，使用寿命更长；
3、双重的密封设计（波纹管+填料）若波纹管失效，阀杆填料也会避免泄漏，并符合国际密封标准；
4、阀盖上自带有加脂接头，可直接对阀杆、螺母和轴套进行润滑，不像传统的只对螺纹加润滑油；
5、人体工程学设计手轮，使用寿命更长，操作轻松便捷，更安全可靠。

6、没有流体损失，降低能源损失，提高工厂设备安全。

7、密封面堆焊Co基硬质合金、耐磨、耐腐、抗摩擦性能好、使用寿命长，减少维修次数，降低经营成本。

8、波纹管截止阀阀杆调质及表面氮化处理，有良好的抗腐和抗摩擦性能；

9、阀杆升降位置指示更直观。

1. The key component of the bellows sealed globe valve is the metal bellows. The lower end is automatically welded to the valve stem assembly, and the upper end is automatically welded to the connecting plate to form a metal barrier between the fluid medium and the atmosphere, ensuring zero leakage of the valve stem;

2. The valve disc adopts a conical design, and the sealing surface is streamlined with the medium, resulting in better sealing performance and longer service life;

3. Dual sealing design (bellows+packing): If the bellows fails, the valve stem packing will also avoid leakage and comply with international sealing standards;

4. The valve cover comes with a grease fitting, which can directly lubricate the valve stem, nut, and shaft sleeve, unlike traditional methods that only lubricate the threads;

5. Ergonomic design handwheel, with a longer service life, easy and convenient operation, and safer and more reliable.

6. No fluid loss, reduce energy loss, and improve factory equipment safety.

7. The sealing surface is welded with Co based hard alloy, which is wear-resistant, corrosion-resistant, has good friction resistance, long service life, reduces maintenance frequency, and lowers operating costs.

8. The valve stem of the bellows globe valve is quenched and treated with surface nitriding, which has good corrosion and friction resistance properties;

9. The valve stem lifting position indication is more intuitive.

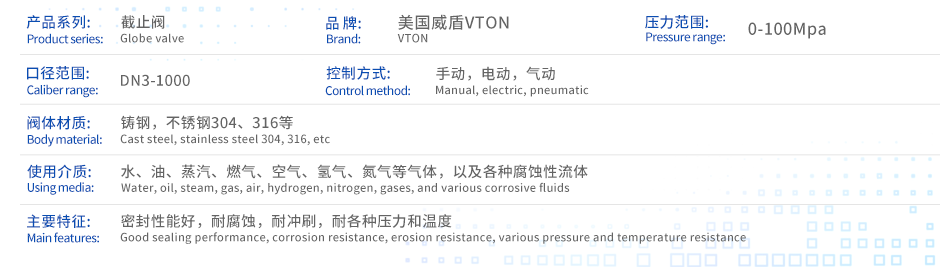

三、进口波纹管截止阀参数

口径：DN15-500mm

压力：PN16-PN160，150LB-2500LB

温度：-196℃-550℃

阀体材质：铸钢，不锈钢，锻钢，铬钼钢

连接方式：法兰，螺纹，焊接

适用介质：易燃、易爆、剧毒、毒性流体、高温导热油、液氨等

用途（Selection of Possible Applications）:工业、电站、废气净化厂、天然气等
