一、进口气体法兰减压阀产品概述

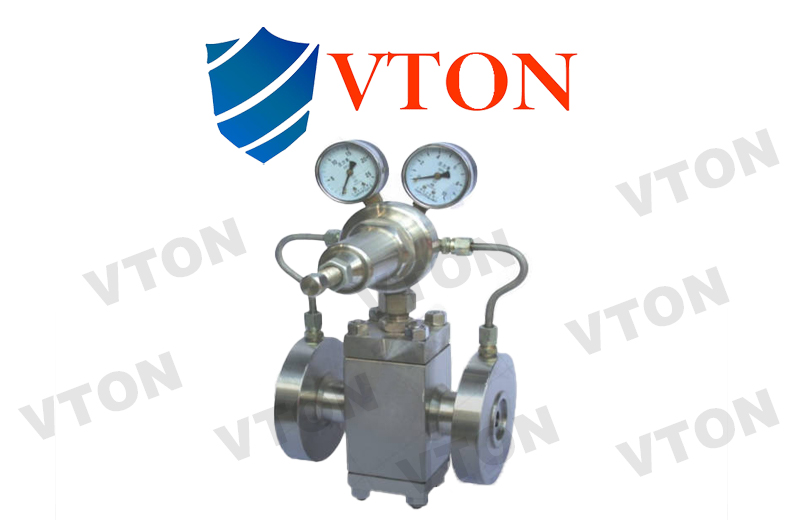

进口气体法兰减压阀（威盾VTON），Gas flange pressure reducing valve，也叫法兰连接减压阀，法兰式气体减压阀，法兰式调压阀，是指采用法兰的连接方式，法兰标准有美标的ANSI150LB,300LB,600LB,900LB,1500LB,日标的10K,20K,国标的GB，PN16，PN25,PN40,PN64,PN100,PN160,PN250N，用于空气、氮气、氧气、氢气、氦气、氩气、液化气、天然气等气体管道，通过调节弹簧压力设定出口压力、利用膜片传感出口压力变化，通过导阀启闭驱动活塞调节主阀节流部位过流面积的大小，实现对气体的减压稳压功能。从流体力学的观点看，减压阀是一个局部阻力可以变化的节流元件，即通过改变节流面积，使流速及流体的动能改变，造成不同的压力损失，从而达到减压的目的。然后依靠控制与调节系统的调节，使阀后压力的波动与弹簧力相平衡，使阀后压力在一定的误差范围内保持恒定。

Gas flange pressure reducing valve (VTON), also known as flange connected pressure reducing valve, flange type gas pressure reducing valve, flange type pressure regulating valve, refers to the use of flange connection method. The flange standards include American standard ANSI150LB, 300LB, 600LB, 900LB, 1500LB, Japanese standard 10K, 20K, national standard GB, PN16, PN25, PN40, PN64, PN100, PN160, PN250N, used in gas pipelines such as air, nitrogen, oxygen, hydrogen, helium, argon, liquefied gas, natural gas, etc. The outlet pressure is set by adjusting the spring pressure and utilizing The diaphragm sensing outlet pressure changes, and the pilot valve drives the piston to adjust the size of the flow area at the throttle position of the main valve through opening and closing, achieving the function of reducing pressure and stabilizing pressure on the gas. From the perspective of fluid mechanics, a pressure reducing valve is a throttling element that can change local resistance. By changing the throttling area, the flow rate and kinetic energy of the fluid are changed, resulting in different pressure losses and achieving the purpose of pressure reduction. Then, relying on the adjustment of the control and adjustment system, the fluctuation of the pressure behind the valve is balanced with the spring force, so that the pressure behind the valve remains constant within a certain error range.

二、进口气体法兰减压阀产品特征

1、用于压缩空气的管道介质。

2、属于先导活塞式减压阀。由主阀和导阀两部分组成。主阀主要由阀座、主阀盘、活塞、弹簧等零件组成。导阀主要由阀座、阀瓣、膜片、弹簧、调节弹簧等零件组成。控制精确。

3、通过调节调节弹簧压力设定出口压力、利用膜片传感出口压力变化，通过导阀启闭驱动活塞调节主阀节流部位过流面积的大小，实现减压稳压功能。进口压力不断变化的情况下，保持出口听压力和温度值在一定的范围内。

1. Pipeline medium used for compressed air.

2. Belongs to a pilot piston type pressure reducing valve. It consists of two parts: the main valve and the pilot valve. The main valve is composed of parts such as valve seat, main valve disc, piston, spring, etc. The pilot valve is mainly composed of parts such as valve seat, valve disc, diaphragm, spring, and regulating spring. Accurate control.

3. By adjusting the spring pressure to set the outlet pressure, using the diaphragm to sense the change in outlet pressure, and driving the piston to adjust the size of the flow area at the throttle position of the main valve through the opening and closing of the pilot valve, the pressure reducing and stabilizing function is achieved. Maintain the outlet listening pressure and temperature values within a certain range while the import pressure is constantly changing.

三、进口气体法兰减压阀技术参数及性能

四、进口气体法兰减压阀主要零件材料

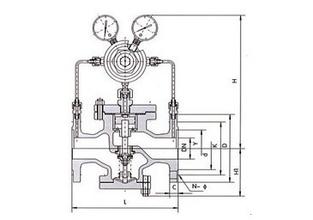

五、进口气体法兰减压阀 结构尺寸图
