一、进口电动衬氟蝶阀概述

进口电动衬氟蝶阀：由全衬聚四氟乙烯（F4）、聚三氟氯乙烯（F3）和聚全氟乙丙烯（F46）氟塑料衬里蝶阀和电动执行器组成，具有耐腐蚀、无泄漏、寿命长等优点。 适用于浓硫酸、盐酸、硝酸、氢氟酸、王水、各种有机酸、强酸、氧化性介质或高温烯硫酸、高温浓醋酸、酸碱交替及多种有机溶剂和其它强腐蚀性介质，对介质进行开关或者调解的作用。有开关型和调节型，阀体材质有铸铁，铸钢，不锈钢，连接方式有对夹和法兰。

电动蝶阀具有功能强、体积小、轻便宜人、性能可靠、配套简单、流通能力大、电动蝶阀特别是适合于介质粘稠、含颗粒、纤维性质的场合。目前该电动调节蝶阀广泛应用于食品、环保、轻工、石油、造纸、化工、教学和科研设备、电力等行业的工业自动控制系统中。

Electric lined fluorine butterfly valve: composed of fully lined polytetrafluoroethylene (F4), polytetrafluorochloroethylene (F3), and polytetrafluoroethylene propylene (F46) fluorine plastic lined butterfly valve and electric actuator, it has advantages such as corrosion resistance, no leakage, and long service life. Suitable for concentrated sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, aqua regia, various organic acids, strong acids, oxidizing media, or high-temperature sulfuric acid, high-temperature concentrated acetic acid, acid-base alternation, as well as various organic solvents and other highly corrosive media, to switch or regulate the media. There are switch and adjustment types, and the valve body materials include cast iron, cast steel, and stainless steel. The connection methods include clamp and flange.

Electric butterfly valves have strong functions, small size, lightweight and pleasant, reliable performance, simple matching, and large flow capacity. Electric butterfly valves are especially suitable for situations with viscous media, particles, and fiber properties. At present, the electric regulating butterfly valve is widely used in industrial automatic control systems in industries such as food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and research equipment, and power.

二、进口电动衬氟蝶阀特征

1、设计新颖、合理、结构独特，重量轻，启闭迅速。

2、操力矩小，操作方便，省力灵巧。

3、可以任何位置安装，维修方便。

4、密封件可以更换，密封性能可靠达到双向密封零泄漏。

5、密封材料耐老化、耐腐蚀，使用寿命长等特点。

1. The design is novel, reasonable, and has a unique structure, with light weight and fast opening and closing.

2. Small operating torque, convenient operation, labor-saving and agile.

3. Can be installed in any position, convenient for maintenance.

4. The sealing element can be replaced, and the sealing performance is reliable, achieving zero leakage in both directions.

5. The sealing material has characteristics such as aging resistance, corrosion resistance, and long service life.

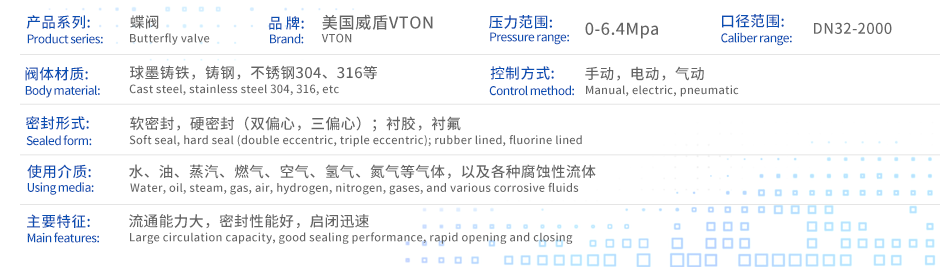

三、进口电动衬氟蝶阀技术参数
