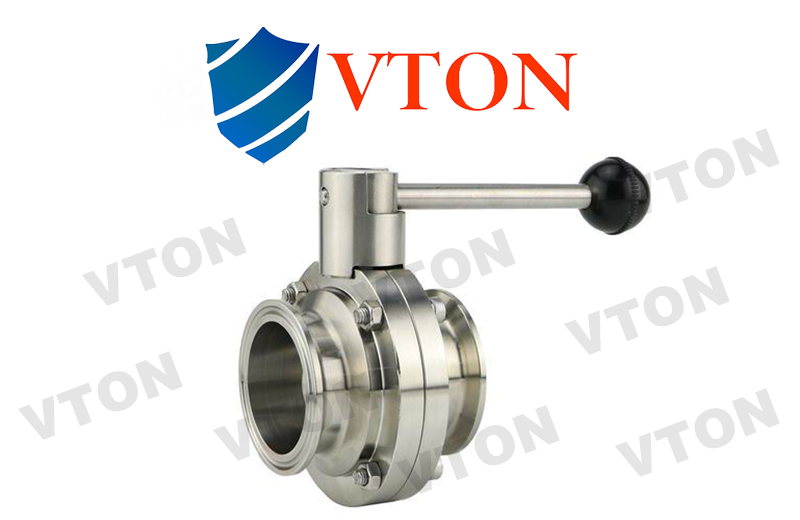

一、进口卫生级快装蝶阀产品概述

进口卫生级快装蝶阀（美国威盾VTON）, Sanitary quick butterfly valve，也叫卡箍蝶阀,食品专用蝶阀，是采用卡箍式、圆螺纹式连接，抛光度和洁净度符合卫生级的标准，与介质接触部份均为镜面抛光，无死角，无残留，卫生级快装蝶阀具有结构简单、造型美观、装拆快捷，开关迅速，操作灵活，流体阻力小，使用安全可靠的蝶阀。全部钢件采用耐酸不锈钢材料，密封件采用食品硅橡胶或聚四氟乙烯材料，符合食品卫生规范。

美国威盾VTON卫生级快装蝶阀广泛适用于食品、酿酒、饮料、乳制品、精细化工制药及生物工程等众多行业。

Sanitary quick butterfly valve (VTON, USA), also known as clamp butterfly valve, is a food specific butterfly valve. It adopts clamp type and circular thread connection, and the polishing and cleanliness meet hygiene standards. The parts in contact with the medium are mirror polished, without dead corners or residues. The sanitary quick butterfly valve has a simple structure, beautiful appearance, quick installation and disassembly, quick opening and closing, flexible operation, low fluid resistance, and safe and reliable use. All steel components are made of acid resistant stainless steel materials, and sealing components are made of food silicone rubber or polytetrafluoroethylene materials, which comply with food hygiene standards.

The American Weidun VTON sanitary fast butterfly valve is widely used in many industries such as food, brewing, beverages, dairy products, fine chemical pharmaceuticals, and biotechnology.

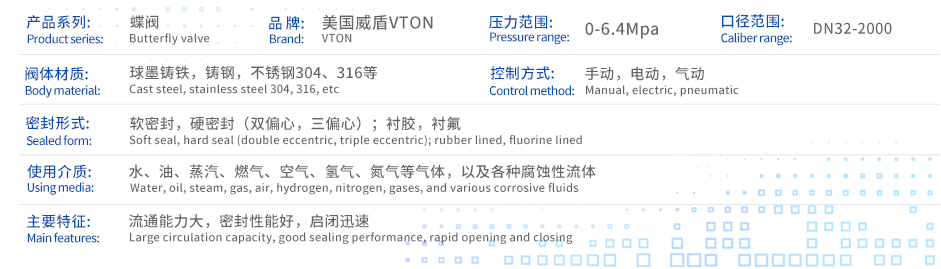

二、进口卫生级快装蝶阀产品参数

规格：DN20-150，1″-6″

压力：PN0.6-1.6

温度：0-180℃

标准：DIN、SMS、ISO

材质：SUS304、SUS316L

驱动方式：手动，气动，电动

密封材质：三元乙丙(EPDM)、硅胶(SI),Ф57以下为三元乙丙(EPDM)

三、进口卫生级快装蝶阀尺寸图
