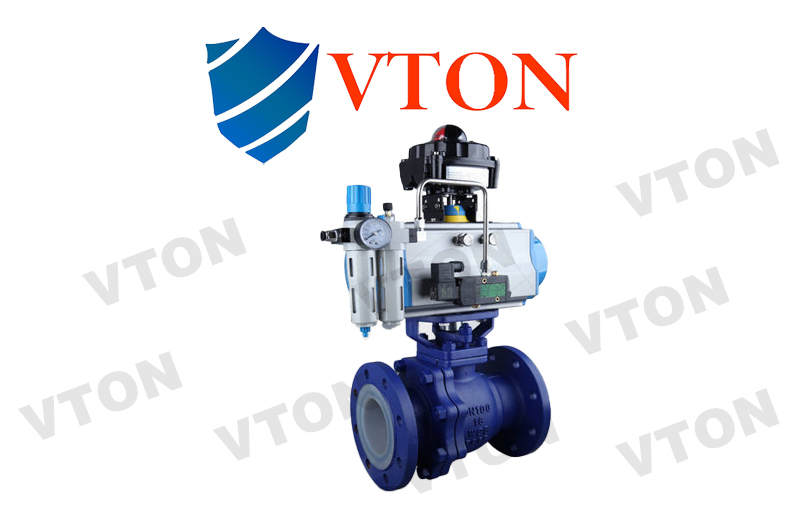

一、进口碳钢衬氟球阀概述

品牌：美国威盾VTON

进口碳钢衬氟球阀内腔及球体均采用高压注塑工艺衬有耐腐蚀、耐老化的聚全氟乙丙稀（F46），故具有可靠的耐腐蚀性和密封性。广泛用于化工、石油、冶金、医药等工业部门，实现对生产过程中酸、碱等强腐蚀介质的调节或切断，在水处理过程控制中使用效果最明显。

The inner cavity and sphere of carbon steel lined fluorine ball valve are lined with corrosion-resistant and aging resistant polytetrafluoroethylene propylene (F46) using high-pressure injection molding technology, which has reliable corrosion resistance and sealing performance. Widely used in industrial sectors such as chemical, petroleum, metallurgy, medicine, etc., it achieves the regulation or cutting off of strong corrosive media such as acid and alkali in the production process, and has the most obvious effect in water treatment process control.

二、进口碳钢衬氟球阀产品特点

1、采用FEP衬里层的球阀,具有极高的化学稳定性,可以适用除“熔融碱金属和元素氟”，以外其它任何强腐蚀性质

2、采用全通径、浮动球结构，阀门可在整个压力范围内进行无泄漏关闭，更便于管路系统的通球扫线和管路维护

3、启闭件球件与阀杆铸（锻）为一体，杜绝了由于压力变化引起阀杆冲出承压件内的可能性，从根本上保证了工程中的使用安全性

4、结构紧凑合理，阀体内腔空间最小，减小了介质滞留，另外，特殊的模压工艺，使密封面致密度良好，加之人字环形PTFE填料组合，使阀门达到零泄漏

5、两片式、三片式结构可适应各种不同要求的管路系统和工况条件，其中三片球阀允许主阀体与两侧阀体分离，可实现在线快速更换、维修

1. Ball valves with FEP lining layer have extremely high chemical stability and can be used for any strong corrosive properties except for molten alkali metals and elemental fluorine

2. Adopting a full bore, floating ball structure, the valve can be closed without leakage throughout the entire pressure range, making it more convenient for ball cleaning and pipeline maintenance of the pipeline system

3. The ball parts of the opening and closing parts are integrated with the valve stem casting (forging), which eliminates the possibility of the valve stem punching out of the pressure bearing parts due to pressure changes, fundamentally ensuring the safety of use in engineering

4. The structure is compact and reasonable, with the smallest internal cavity space of the valve body, reducing medium retention. In addition, the special molding process makes the sealing surface have good density, and the combination of herringbone ring PTFE packing makes the valve achieve zero leakage

5. The two piece and three piece structures can adapt to various pipeline systems and working conditions with different requirements. Among them, the three piece ball valve allows the main valve body to be separated from the two side valve bodies, and can achieve online rapid replacement and maintenance.

三、进口碳钢衬氟球阀性能参数

四、进口碳钢衬氟球阀工作原理

球阀的启闭件是个球体，球体围绕阀体中心轴作旋转来达到开启或关闭,适用于有微小颗粒的介质上。球阀的耐磨、密封性好、开关快/轻、流体阻力小、操作简单方便，注定了球阀成为应用范围最广，整体使用性能最高的阀门。球阀适合做开关，不建议做调节使用(V型系列球阀除外)。注意：如果介质为燃点较低的气液体建议采用"实心"的半球体作为启闭件，防止因球阀的关闭而导致残留在球体内的气液体因温度的升高而发生化学变化。

The opening and closing part of a ball valve is a sphere, which rotates around the central axis of the valve body to achieve opening or closing, suitable for media with small particles. The wear resistance, good sealing performance, fast/light switching, low fluid resistance, and simple and convenient operation of ball valves make them the most widely used and high-performance valves. Ball valves are suitable for use as switches and are not recommended for adjustment purposes (except for V-series ball valves).
