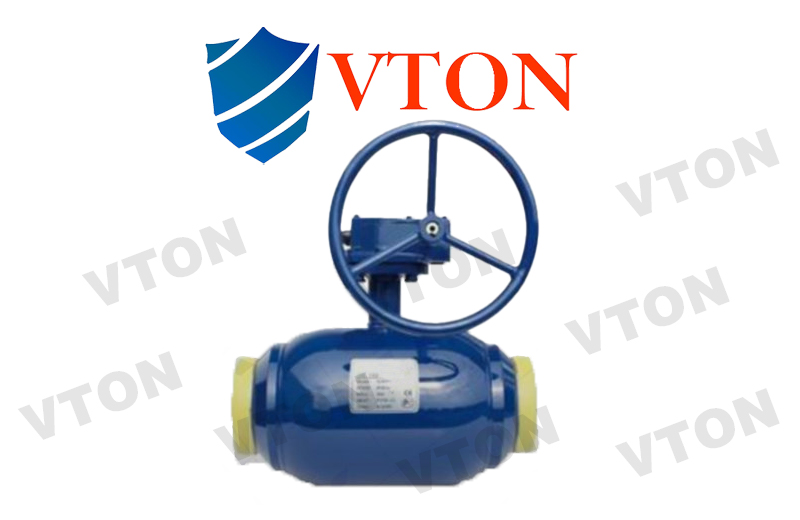

一、进口电动全焊接球阀概述

进口电动全焊接球阀（美国威盾VTON），Electric welded ball valve，也叫电动焊接球阀，电动控制球阀，电动焊接式球阀，电动碳钢球阀，是指由电动执行器和全焊接球阀组成，有电动执行器来对全焊接球阀进行开关控制，可实现远程智能化控制。电动全焊接球阀旋转90°即可全关全开，与相同规格的闸阀和截止阀比较。阀体通道和连接管径相等并成一直径，介质几乎可以毫无损失的流过，在石油化工和长输管线等领域有广泛应用。

Electric welded ball valve (VTON), also known as electric welded ball valve, electric control ball valve, electric welded ball valve, electric carbon steel ball valve, refers to a combination of electric actuator and fully welded ball valve, with electric actuator to control the opening and closing of the fully welded ball valve, which can achieve remote intelligent control. The electric fully welded ball valve can be fully closed and fully opened by rotating 90 °, compared with gate valves and globe valves of the same specifications. The valve body channel and connecting pipe have the same diameter and can flow almost without any loss, making it widely used in fields such as petrochemicals and long-distance pipelines.

二、进口电动全焊接球阀特点

①进口电动全焊接球阀适用于两位切断、调节的场合。

②进口电动全焊接球阀可实现对石油、化工、造纸、冶金、污水处理、油罐车等运输管道内介质的切断和流通

③进口电动全焊接球阀密封性能优良、流通能力大、装卸维护方便、流阻小、密封可靠，甚至切断

④进口电动全焊接球阀体积小、重量轻、推力大、功能强、伺服放大器内装、操作方便、可靠性高

⑤进口电动全焊接球阀流向可任意，可调范围广，能用于高压和大口径场合，控制高粘度，带有纤维和细颗粒的介质

⑥直连方式，电动执行机构内置伺服系统，无须另配伺服放大器，输入输出信号4-20mA及3800VAC电源即可控制运转。具有连线简单、结构紧凑、动作稳定可靠等优点

① The imported electric fully welded ball valve is suitable for two position cutting and adjustment situations.

② Imported electric fully welded ball valves can achieve the cutting and circulation of media in transportation pipelines such as petroleum, chemical, papermaking, metallurgy, sewage treatment, and oil tank trucks.

③ The imported electric fully welded ball valve has excellent sealing performance, large flow capacity, convenient loading and unloading maintenance, small flow resistance, reliable sealing, and even cutting off.

④ Imported electric fully welded ball valves have small volume, light weight, high thrust, strong functionality, built-in servo amplifiers, convenient operation, and high reliability.

⑤ The imported electric fully welded ball valve has a wide adjustable range and can be used in high-pressure and large-diameter situations, controlling high viscosity media with fibers and fine particles.

⑥ Direct connection method, the electric actuator is equipped with a built-in servo system, without the need for an additional servo amplifier. The input and output signals of 4-20mA and 3800VAC power supply can control the operation. It has the advantages of simple connection, compact structure, stable and reliable action, etc.

三、进口电动全焊接球阀产品参数：

连接方式:对焊

口径尺寸: [DN15-DN2000]

工作压力:[PN1.6、PN2.5、PN4.0 MPA]]

介质温度:－20℃≈180℃。[可根据不同的工控选择材料]

流体介质: 水、油品、气、燃气类介质。

阀体材质:碳钢、不锈钢。[可选]

密封材质: 聚四氟乙稀PTFE 增强聚四氟乙稀PPL

球芯材质: 实芯不锈钢球

阀杆材质:不锈钢。

填料: 石墨、增强聚丙稀

连接方式:法兰、焊接

驱动方式：电动

适用场合：供暖系统、供热区域、工业管道等用途。
