一、进口全焊接球阀概述

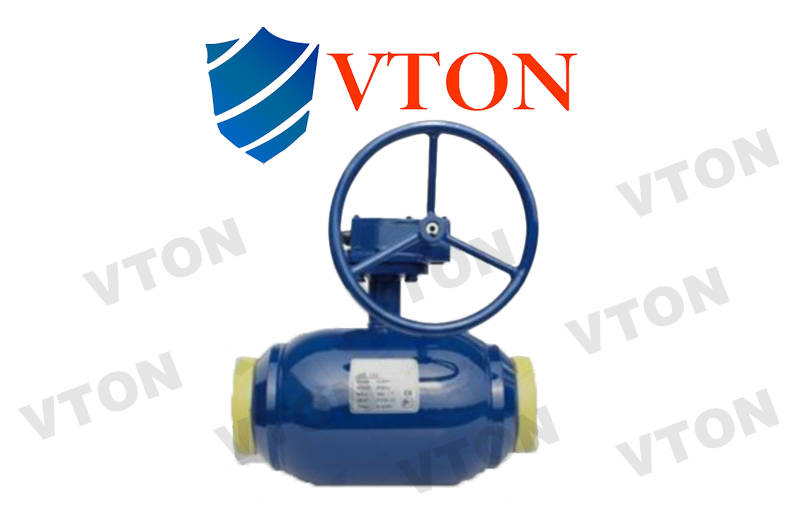

进口全焊接球阀（美国威盾VTON），也叫焊接式球阀，对焊球阀，是指采用碳钢无缝钢管压制成型整体式，以不锈钢为球体，采用全焊接的连接方式，采用碳强化PTFE斜面弹性密封圈负压在球面上，用于热水、蒸汽等管道介质，使密封达到零泄漏的球阀。

美国威盾VTON全焊接球阀主要应用领域：

1、城市燃气:燃气输出管道、主干线及个支线供应管道等。

2、集中供热:大型供热设备输出管线、主干线、支线。热交换机:管道及各回路启闭。

3、钢铁厂：各种流体管道、废气排放管道、煤气和热力供应管道、燃料供应管道。

4、各种工业设备：各种热处理管道、各种工业煤气和热力管道。

All welded ball valve (VTON), also known as welded ball valve or butt welded ball valve, refers to a ball valve that is made of carbon steel seamless steel pipe and pressed into an integral shape, with stainless steel as the sphere. It adopts a fully welded connection method, and uses carbon reinforced PTFE inclined elastic sealing ring negative pressure on the sphere. It is used for hot water, steam and other pipeline media to achieve zero leakage sealing.

The main application areas of American Weidun VTON fully welded ball valves are:

1. Urban gas: gas output pipelines, main and individual branch supply pipelines, etc.

2. Centralized heating: Large scale heating equipment output pipelines, main pipelines, and branch pipelines. Heat exchanger: opening and closing of pipelines and various circuits.

3. Steel plant: various fluid pipelines, exhaust gas discharge pipelines, gas and heat supply pipelines, fuel supply pipelines.

4. Various industrial equipment: various heat treatment pipelines, various industrial gas and heating pipelines.

二、进口全焊接球阀产品特征

1. 全焊接球阀采用碳钢无缝钢管压制成型整体式焊接球阀。

2. 全焊接球阀阀杆采用AISI303不锈钢、阀体采用AISI304不锈钢，经精加工研磨制作，具有优良密封性能及耐腐蚀性能。

3. 全焊接球阀密封采用碳强化PTFE斜面弹性密封圈负压在球面上，使密封达到零泄漏，使用寿命长等优点。

4. 全焊接球阀结构紧凑、重量轻、易于保温、便于安装。此阀一般水平安装。

5、全焊接球阀自救阀座
垂直装置和加长阀杆
特殊端口和通径
抗静电装置
阀杆能紧急处理油脂
阀座润滑剂和紧急密封剂设备
金属对金属阀座密封
双切断和排放
双活塞作用阀座
带有石墨垫圈的安全防火设计
阀座密封用塑料聚合物
球体和阀杆无电镀镍

1. The fully welded ball valve adopts a carbon steel seamless steel pipe pressed and formed integral welded ball valve.

2. The fully welded ball valve stem is made of AISI303 stainless steel, and the valve body is made of AISI304 stainless steel, which has been finely processed and ground, and has excellent sealing performance and corrosion resistance.

3. The fully welded ball valve adopts carbon reinforced PTFE inclined elastic sealing ring with negative pressure on the spherical surface, which achieves zero leakage and long service life.

4. The fully welded ball valve has a compact structure, light weight, easy insulation, and easy installation. This valve is generally installed horizontally.

5. Fully welded ball valve self rescue valve seat

Vertical device and extended valve stem

Special ports and diameters

Antistatic device

The valve stem can handle grease urgently

Valve seat lubricant and emergency sealant equipment

Metal to metal valve seat sealing

Double cut off and discharge

Double piston action valve seat

Safe Fire Protection Design with Graphite Washers

Plastic polymer for valve seat sealing

Ball and valve stem without nickel plating
