一、进口气动卫生级三通球阀概述

进口气动卫生级三通球阀（美国威盾VTON），pneumatic sanitary three-way ball valve，卫生级气动三通球阀，也叫气动三通快装球阀，气动卡箍三通球阀，气动316L三通球阀，气动卫生三通球阀，由气动执行器和卫生级三通球阀，可以由气动执行器来实现对三通球阀的开关换向进行智能化的远程控制。

美国威盾VTON气动卫生级三通球阀皆经过精密的检验流程和严格的品质管理。加工过程中，流道经过精密抛光和灭菌处理。其结构分为三通T型、三通L型，对介质起到分流、合流、换向等作用。密封圈为全封闭式紧紧包裹住阀球，无空间和死角。两端为卡箍连接方便拆卸、清洗、维修工作原理也是通过气动执行器90度的旋转来带动球体的旋转以达到介质的流通与阻断。

Pneumatic sanitary three-way ball valve (VTON), also known as sanitary pneumatic three-way ball valve, pneumatic clamp three-way ball valve, pneumatic 316L three-way ball valve, pneumatic sanitary three-way ball valve, consists of pneumatic actuator and sanitary three-way ball valve, and can be intelligently controlled remotely by pneumatic actuator to switch and reverse the three-way ball valve.

VTON pneumatic sanitary three-way ball valves have undergone precise inspection processes and strict quality management. During the processing, the flow channel undergoes precision polishing and sterilization treatment. Its structure is divided into three-way T-shaped and three-way L-shaped, which play a role in diverting, merging, and reversing the medium. The sealing ring is fully enclosed and tightly wraps around the valve ball, without any space or dead corners. The two ends are connected with clamps for easy disassembly, cleaning, and maintenance. The working principle is also to drive the rotation of the sphere through the 90 degree rotation of the pneumatic actuator to achieve the flow and blockage of the medium.

二、进口气动卫生级三通球阀产品特征

1、孔径大小与管道一致，不产生沉淀物

2、流道内壁240Grit抛光，保证流道畅通无阻

3、采用全包的PTFE密封没有死角，易清洗

4、双层阀杆填料与对压碟型弹片装置

1. The aperture size is consistent with the pipeline and does not produce sediment

2. The inner wall of the flow channel is polished with 240Grit to ensure smooth and unobstructed flow

3. Adopting a fully enclosed PTFE seal with no dead corners, easy to clean

4. Double layer valve stem packing and pressure disc type spring device

三、进口气动卫生级三通球阀产品参数

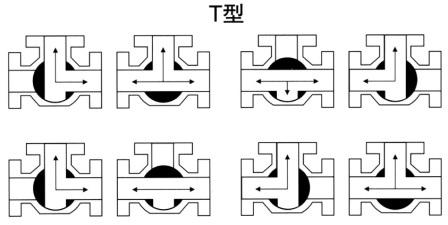

四、气动卫生级三通球阀流向图
