一、进口卫生级卡箍球阀概述

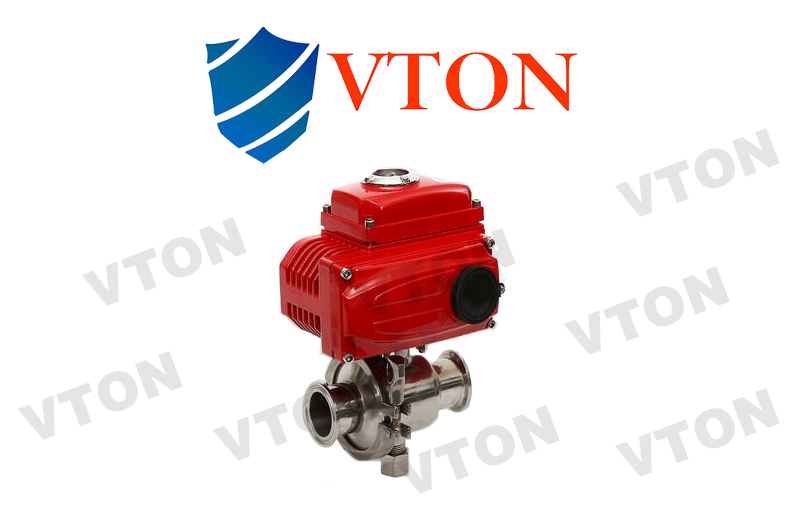

进口卫生级卡箍球阀（美国威盾VTON），Sanitary clamp ball valve，也叫卫生级快装球阀，卫生级316L球阀，卫生球阀，食品级球阀，是指球阀阀体采用采用进口SUS304、316L制作，连接方式采用卡箍快装，内外用高档抛光设备处理，达到表面精密度要求，流道经过精密抛光和除菌处理，采用了全包的F4密封，没有死角且容易清洗。卫生级球阀流道内壁采用0.5um（240Grit）电子抛光，保持流体畅通无阻。密封面采用的全包PTFE没有死角，保证卫生。卫生级球阀广泛应用于啤酒工程、食品工程、化学工程、制药工程、生物工程和水处理工程等领域。

Sanitary clamp ball valve (VTON, USA), also known as sanitary quick fit ball valve, sanitary 316L ball valve, sanitary ball valve, food grade ball valve, refers to the ball valve body made of imported SUS304 and 316L, connected by clamp quick fit, and treated with high-end polishing equipment both inside and outside to meet surface precision requirements. The flow passage is precision polished and sterilized, and adopts a fully enclosed F4 seal, which has no dead corners and is easy to clean. The inner wall of the sanitary grade ball valve flow passage is polished with 0.5um (240Grit) electronic polishing to ensure unobstructed fluid flow. The fully enclosed PTFE used for sealing surfaces has no dead corners, ensuring hygiene. Sanitary grade ball valves are widely used in fields such as beer engineering, food engineering, chemical engineering, pharmaceutical engineering, biotechnology, and water treatment engineering.

二、进口卫生级卡箍球阀产品特点

1、流体阻力少，无论是缩径或全通径球阀流阻系数都是所有阀类当中最小的。
2、开关迅速方便，一般情况下只需要手柄转动90℃就完成全开或全关动作，真正实现快速启闭。
3、密封性能好，绝大多数球阀阀座都采用聚四氟乙烯等弹性材料制造，一般这种软密封的密封性容易保证，所有广泛使用。
4、寿命长，由于聚四氟乙烯有良好的自润滑性，与阀体球体阀杆的摩擦磨损小，所有大大提高了球阀的使用寿命。
5、可靠性高，球体与阀座不会擦伤，急剧磨损阀杆不会飞出，有防火、防静电功能。
6、卫生级卡箍球阀使用广泛，除一般介质外，还可输送粘性流体、浆液以及固体颗粒。
7、卫生级卡箍球阀多种转动方式，轻易实现远距离操作以及自动化控制需要。
8、体积小，可安装于管路任一位置，安装快捷方便，运输贮藏也很容易。

1. The fluid resistance is low, and the flow resistance coefficient of both reduced and full bore ball valves is the smallest among all valve types.

2. The switch is quick and convenient. Generally, only the handle needs to be rotated 90 ℃ to complete the full open or full close action, truly achieving fast opening and closing.

3. The sealing performance is good, and the vast majority of ball valve seats are made of elastic materials such as polytetrafluoroethylene. Generally, the sealing performance of this soft seal is easy to ensure, so it is widely used.

4. Long service life, due to the good self-lubricating property of polytetrafluoroethylene, the friction and wear with the valve body and valve stem are small, greatly improving the service life of the ball valve.

5. High reliability, the ball and valve seat will not be scratched, and the valve stem will not fly out due to sharp wear. It has fire and anti-static functions.

6. Sanitary grade clamp ball valves are widely used and can transport viscous fluids, slurries, and solid particles in addition to general media.

7. There are multiple rotation modes for sanitary grade clamp ball valves, which can easily achieve remote operation and automation control needs.

8. Small in size, can be installed at any position in the pipeline, fast and convenient to install, and easy to transport and store.

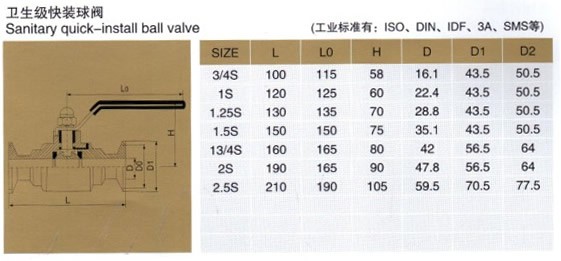

三、进口卫生级卡箍球阀参数

规 格 DN15——DN150、1〞— 6〞Ф12.7—Ф152.4
连接方式：卡箍、焊接、螺纹、法兰（供选）
属系：卫生级球阀系列。
标 准：ISO、DIN、IDF、SMS、3A等。
材 质：不锈钢sus304和sus316L。
质 量：产品内外用高档抛光设备处理，达到表面精密度要求。
密 封 圈：EPDM、NBR、PTFE。
包 装：纸箱/木箱包装/塑料。
工作压力：1.0Mpa
工作温度：—10℃+150℃
应用范围：食品、饮料、制药、乳制品、啤酒以及精细化工。
对外加工：可以按用户要求来图、来样加工非标产品。
适用介质：气体、液体、蒸汽。
