一、进口气动球阀产品说明

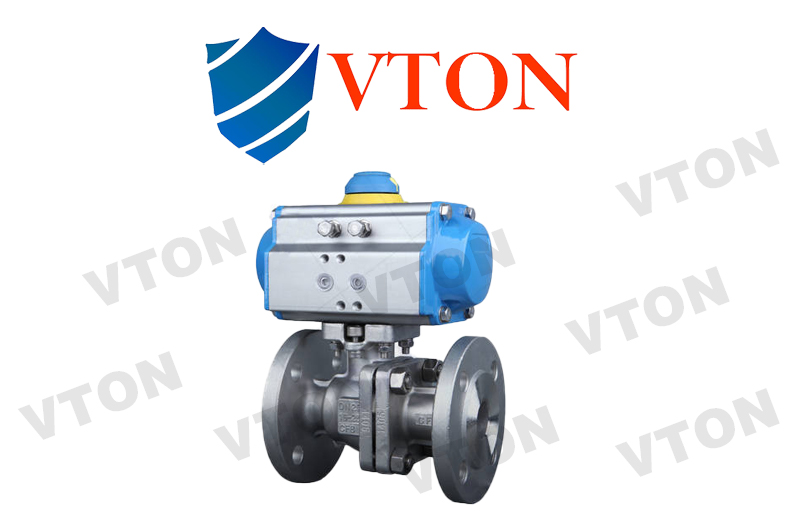

进口气动球阀（美国威盾VTON），Pneumatic ball valve，也叫气动开关球阀，气动调节球阀，是指由气动执行器和球阀组成，有气动执行器来驱动阀门开关或者调节的球阀，可以实现对介质的开关或者调节自动化控制。气动、法兰连接、浮动球直通式结构形式，阀座密封面材料为PTFE、增强 PTFE塑料（Q641F）、金属堆焊钴基（Q641Y），公称压力 PN16~PN63，阀体材料为WCB、CF8、CF8M、合金钢的球阀。

Pneumatic ball valve (VTON), also known as pneumatic switch ball valve or pneumatic regulating ball valve, refers to a ball valve composed of a pneumatic actuator and a ball valve, which has a pneumatic actuator to drive the valve switch or regulation. It can achieve automatic control of the medium switch or regulation. Pneumatic, flange connection, floating ball through structure form, valve seat sealing surface material is PTFE, reinforced PTFE plastic (Q641F), metal overlay cobalt base (Q641Y), nominal pressure PN16~PN63, valve body material is WCB, CF8, CF8M, alloy steel ball valve.

二、进口气动球阀产品特征

美国威盾VTON气动球阀由气动执行器和精密铸造高平台球阀组成，以净化干燥压缩空气为动力源，接受气信号或电气阀门 定位器、电磁阀等附件，接受电信号进行工作，具有整体结构紧凑，开闭迅速操作简单可靠性好等特点，主要产品有单作用气动球阀，双作用气动球阀，带手动气动球阀，气动软密封球阀，气动硬密封球阀，气动V型球阀，气动快速球阀，气动不锈钢球阀，气动铸钢球阀。

VTON pneumatic ball valves are composed of pneumatic actuators and precision cast high platform ball valves. They use purified dry compressed air as the power source, receive pneumatic signals or electrical valve positioners, solenoid valves and other accessories, and receive electrical signals for operation. They have a compact overall structure, fast opening and closing, simple and reliable operation. The main products include single acting pneumatic ball valves, double acting pneumatic ball valves, manual pneumatic ball valves, pneumatic soft sealed ball valves, pneumatic hard sealed ball valves, pneumatic V-shaped ball valves, pneumatic fast ball valves, pneumatic stainless steel ball valves, and pneumatic cast steel ball valves.

三、进口气动球阀执行器参数

四、进口气动球阀材料参数
