一、进口电动单座调节阀概述:

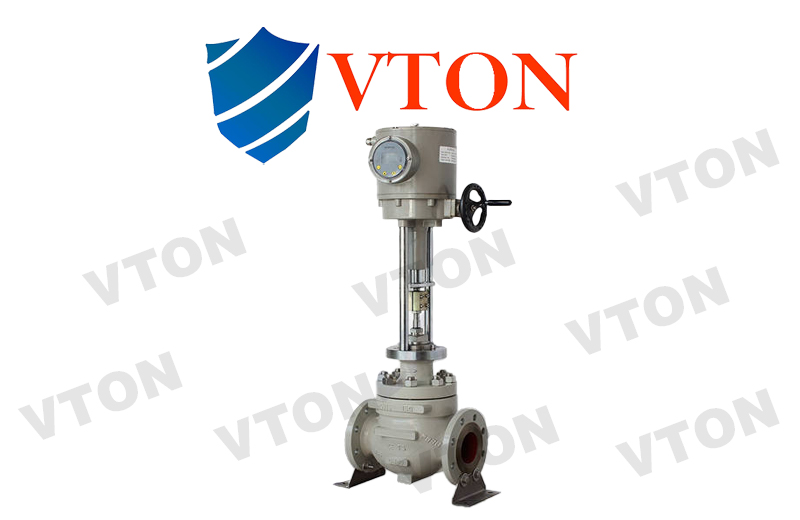

进口电动单座调节阀（美国威盾VTON，Electric single seat control valve）由VTRD型系列直行程电动执行机构和直通单座阀两部分组成，以单相交流220V电源为动力，接受0~10mA或4~20mA直流信号，自动地控制调节阀开度，达到对管道内流体介质的压力、流量、液位等工艺参数的连续调节。电动单座调节阀具有动作灵敏、能源取用方便、信号传输迅速等特点。广泛应用电力、冶金、化工、轻纺等工业自动控制系统中。

The imported electric single seat control valve (VTON, Electric single seat control valve) is composed of two parts: a VTRD series straight stroke electric actuator and a straight through single seat valve. It is powered by a single-phase AC 220V power supply, receives 0-10mA or 4-20mA DC signals, automatically controls the opening of the control valve, and achieves continuous adjustment of process parameters such as pressure, flow rate, and liquid level of the fluid medium in the pipeline. The electric single seat regulating valve has the characteristics of sensitive action, convenient energy access, and rapid signal transmission. Widely used in industrial automatic control systems such as power, metallurgy, chemical industry, and light textile.

二、进口电动单座调节阀性能

三、进口电动单座调节阀参数

阀体型式：直通铸造球型阀体

阀芯型式：非平衡式单座柱塞阀芯

公称通径：DN20~200 NPS 3/4〞~ 8〞

公称压力：PN16 ~ 100 CLASS 150LB ~ 600LB

连接方式：法兰：FF、RF、MF、RTJ

焊接：SW、BW

法 兰 距：符合IEC 60534

阀盖形式：标准型（-5℃~230℃）、

散热片型（-45℃~大于230℃场合）、

低温加长型（-196℃~ -45℃）、波纹管密封型、

保温夹套型

填 料：V型聚四氟乙烯填料、柔性石墨填料等

密 封 垫：金属夹石墨密封垫

执行机构：电动：V3810L系列智能型执行机构、PSL系列执行机构

表面涂漆：绿色 丙稀酸聚胺酯磁漆

Valve body type: straight-through cast ball valve body

Valve core type: unbalanced single-seat plunger valve core

Nominal diameter: DN20~200 NPS 3/4〞~ 8〞

Nominal pressure: PN16 ~ 100 CLASS 150LB ~ 600LB

Connection mode: flange: FF, RF, MF, RTJ

Welding: SW, BW

Flange distance: in accordance with IEC 60534

Valve cover type: standard type (-5℃~230℃)

Heat sink type (-45℃~greater than 230℃)

Low temperature extended type (-196℃~ -45℃), bellows sealed type

Insulation jacket type

Packing: V-shaped PTFE packing, flexible graphite packing, etc

Sealing gasket: metal clip graphite sealing gasket

Actuator: electric: V3810L series intelligent actuator, PSL series actuator

Surface painting: green acrylic polyurethane enamel

四、进口电动单座调节阀可选配材质介绍
