一、进口气动罐底调节阀

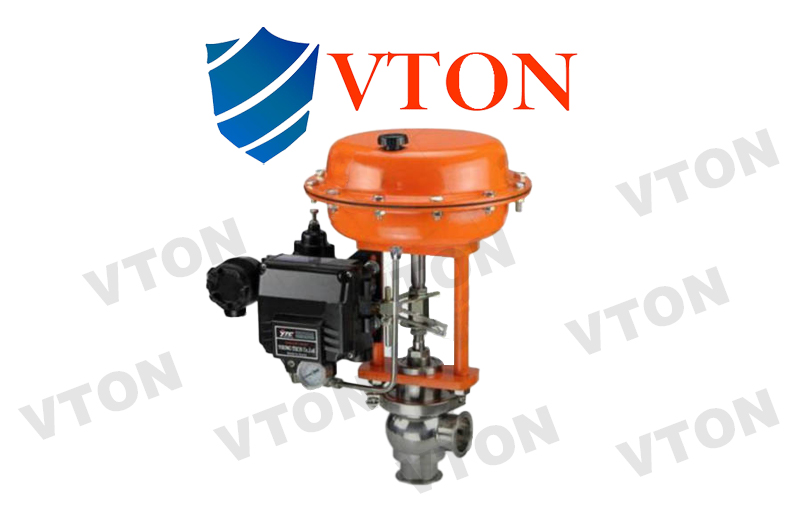

进口气动罐底调节阀（美国威盾VTON）Pneumatic tank bottom regulating valve，是一种特殊结构型式的单座调节阀，阀体成Y形，阀体流路流畅，流量大，压降损失小，阀座泄漏量符合ANSIBIG.104标准，该气动调节阀配用VPA多弹式薄膜执行机构，基结构紧凑；输出力大，美国威盾VTON气动罐底调节阀最适宜控制容易沉积或含有颗粒的流体。

The Pneumatic Tank Bottom Regulating Valve (VTON) is a special type of single seat regulating valve with a Y-shaped valve body. The valve body has a smooth flow path, high flow rate, low pressure drop loss, and the valve seat leakage meets the ANSIBIG.104 standard. The pneumatic regulating valve is equipped with a VPA multi elastic thin film actuator, with a compact base structure; The output power is high, and the American shield VTON pneumatic tank bottom control valve is most suitable for controlling fluids that are prone to sedimentation or contain particles.

二、进口气动罐底调节阀技术参数和性能指标

阀体：WCB、 ZG230-450、ZG1Cr18Ni9Ti、ZG1Cr18Ni12Mo2
阀芯：0Cr18Ni12Mo2、司钛莱合金堆焊
阀座：聚四氟乙烯
阀杆、推杆：2Cr13、1Cr18Ni9Ti
膜盖：A3
弹簧：60Si2Mn
填料：聚四氟乙烯、柔性石墨、不锈钢波纹管
垫片：橡胶石棉板、1Cr18Ni9Ti、石墨缠绕垫片

三、进口气动罐底调节阀详细技术系数
